Model MBS-800

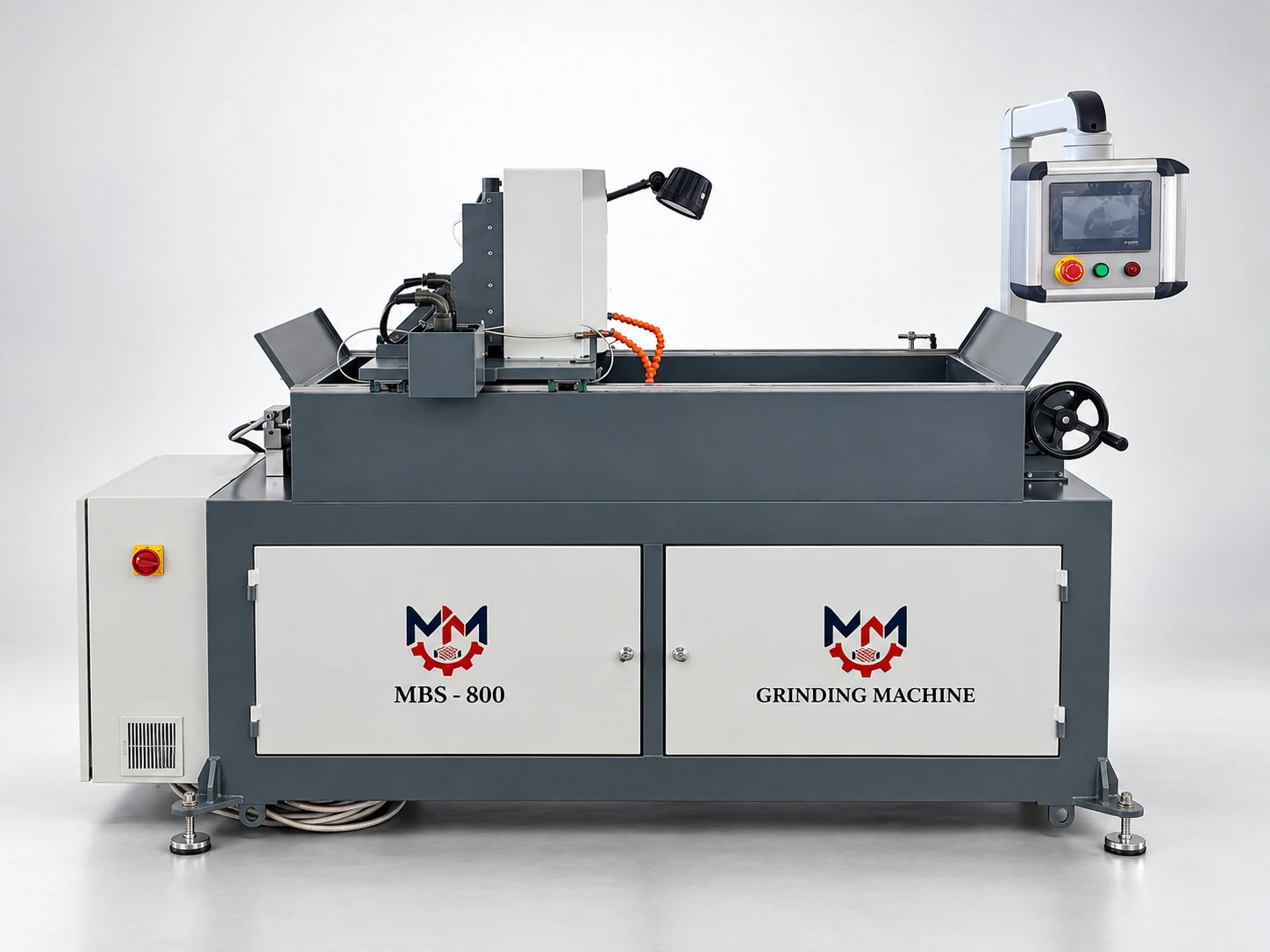

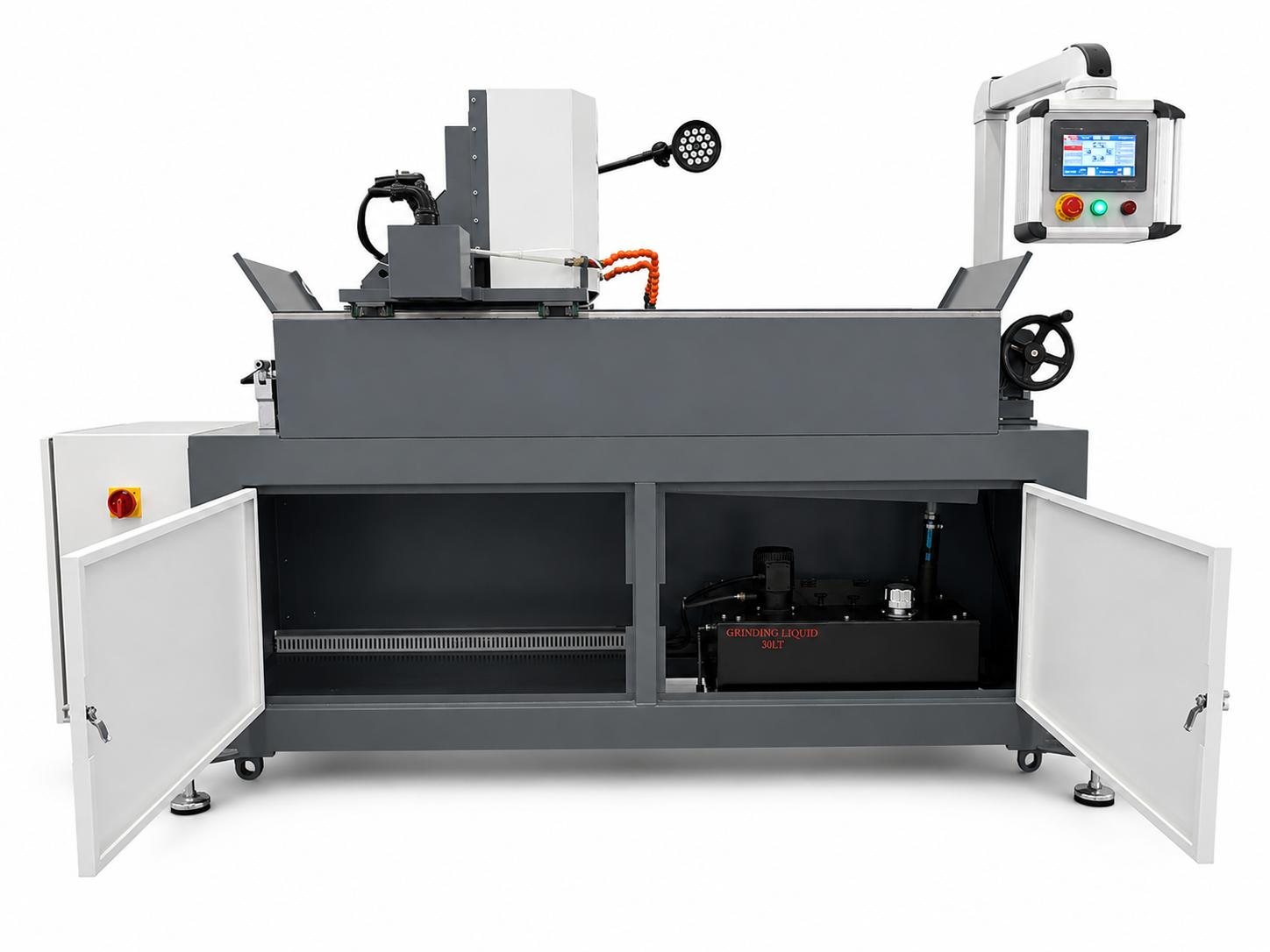

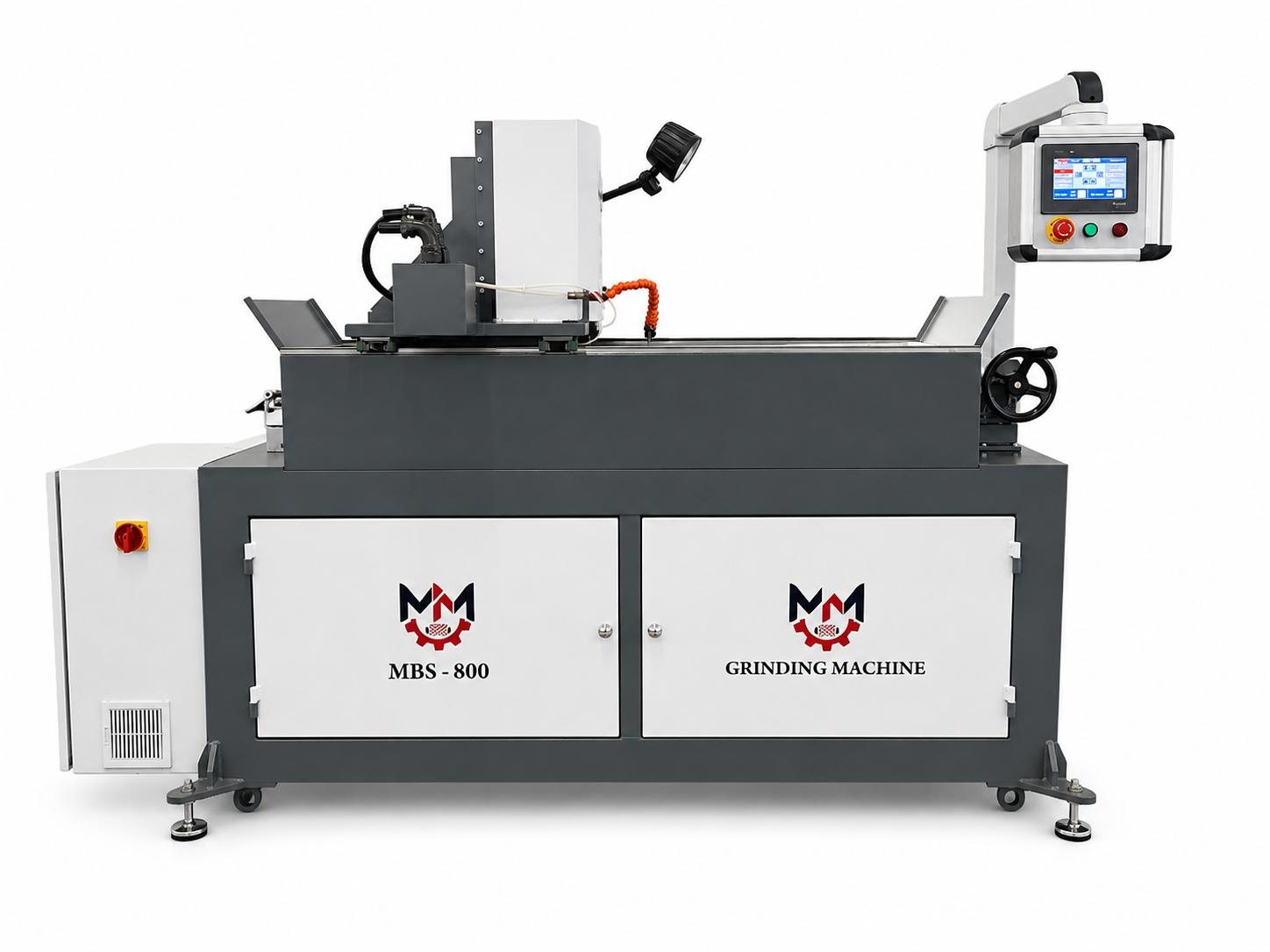

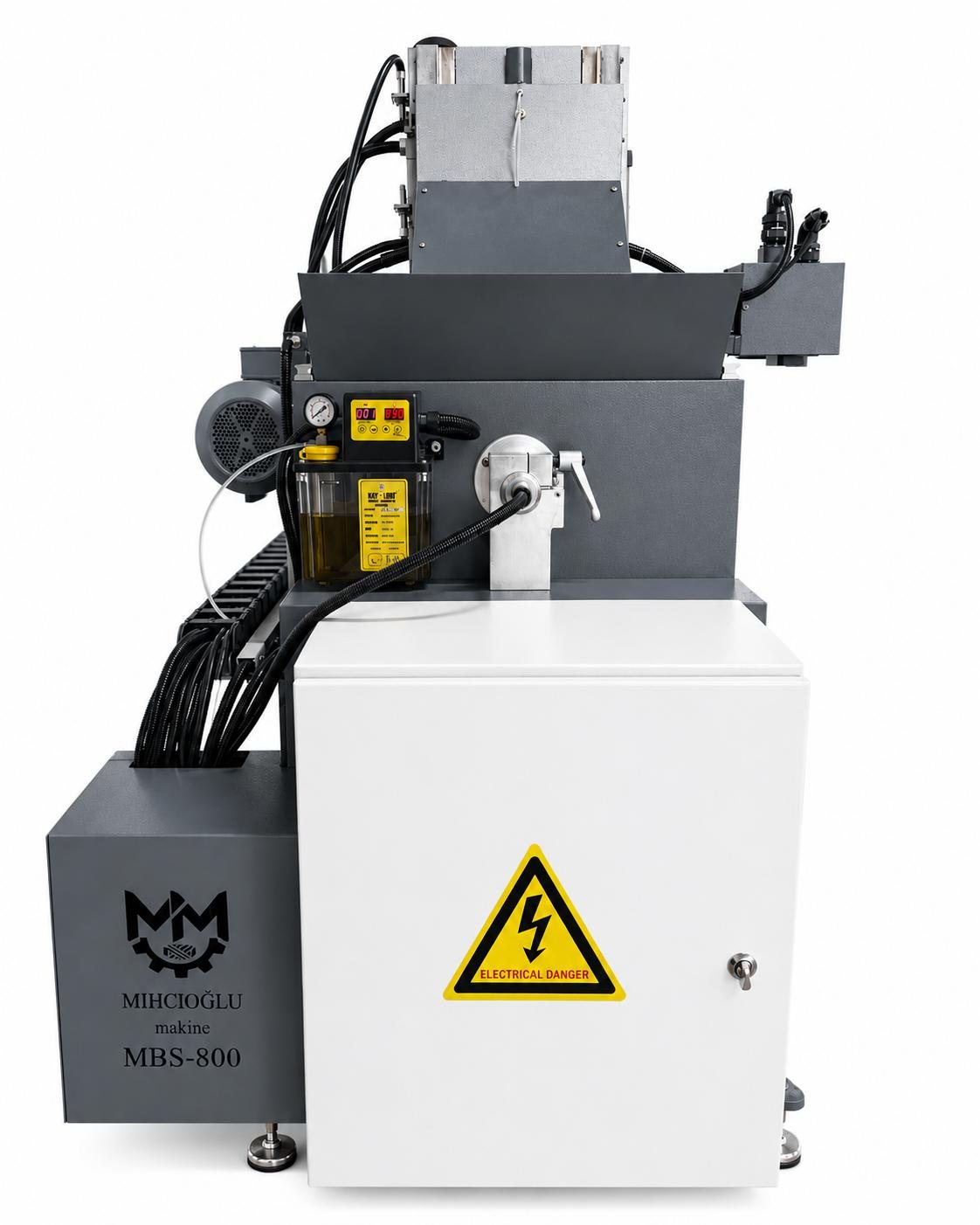

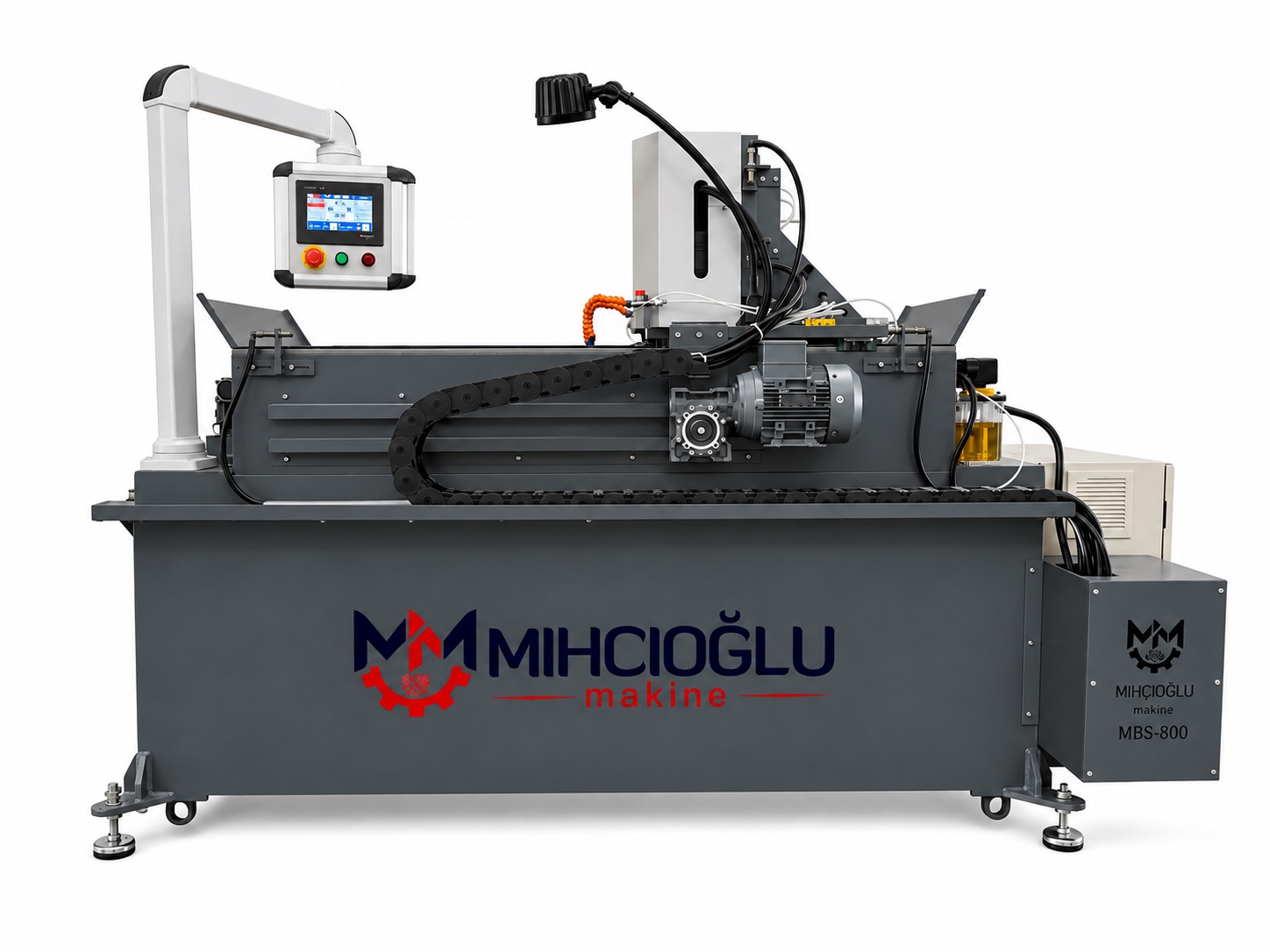

MBS-800 Knife Sharpening Machine
Automatic PLC touchscreen-controlled knife sharpening machine that precisely sharpens guillotine and rotary cutting machine blades.
Manufacturer: Mıhçıoğlu Makine · Made in Türkiye
- 800 mm working width
- PLC-controlled automatic chipping
- Precision grinding head on a linear slide
- Automatic return to home position
Export-ready: CE conformity, seaworthy packing and full shipping documents
Technical Specifications
| Working Width | 800 mm |
|---|---|
| Grinding Stone Diameter | 175 mm |
| Grinding Speed | 0-11 m/sec |
| Sharpening Motor Power | 5 kW |
| Total Power | 6 kW |
| Number of Motors | 3 pcs |
| Automatic Chipping | 0.04 mm |
| Working Voltage | 380 V, 3 phase, 50-60 Hz |
| Magnetic Table Voltage | 110 V |
The MBS-800 sharpening machine is specially designed for sharpening the knives of the MCT60 and MCT50 guillotine machines and knives up to 800 mm in length.
With its PLC control system it chips at the desired position and precision, sets the number of passes and automatically finishes the grinding process in the home position.

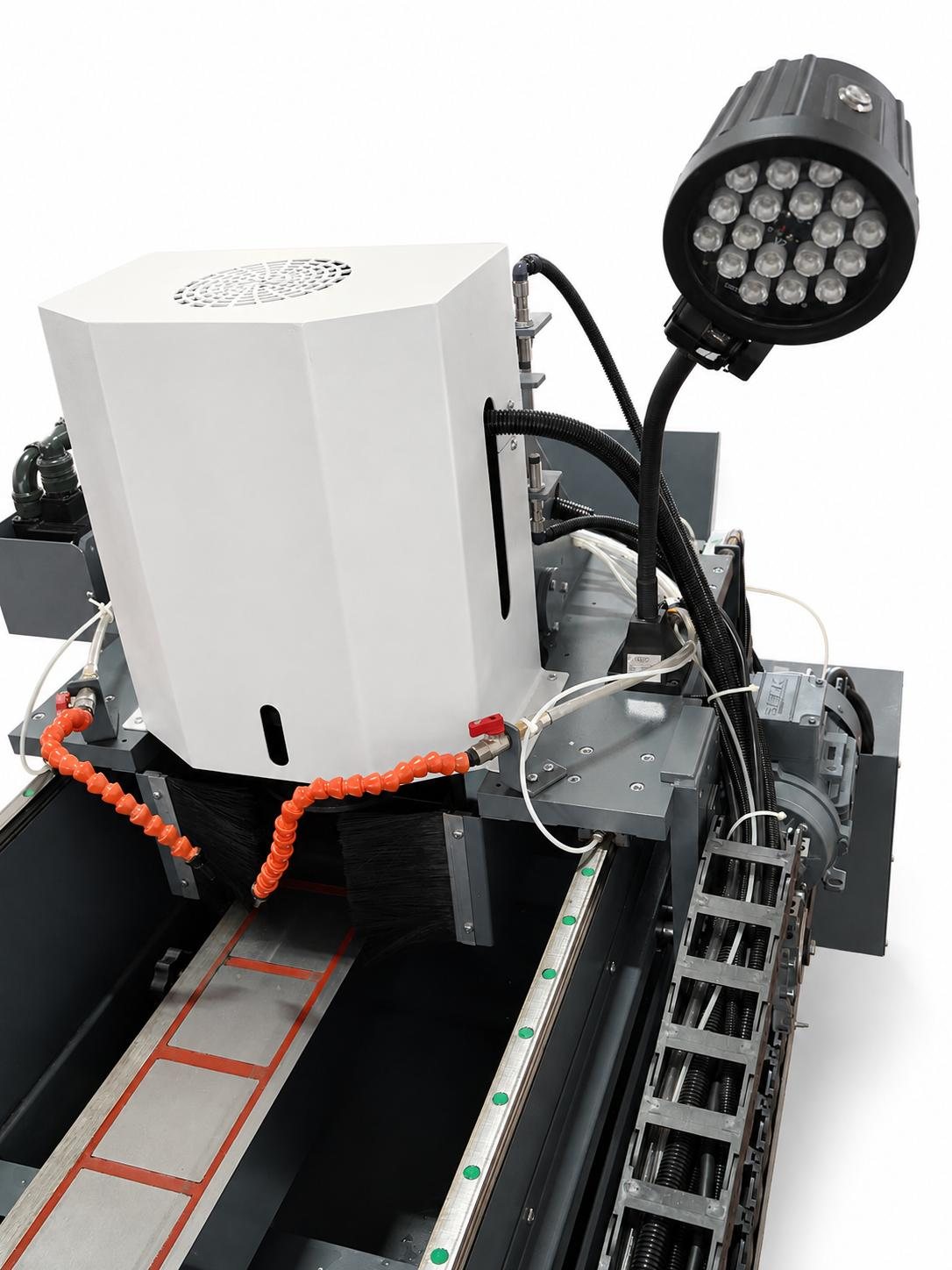

A precision grinding head moves on a linear slide.
Key Features
- Working width: 800 mm.
- Grinding wheel diameter: 175 mm.
- Sharpening speed: 0-11 m/min.
- Automatic infeed: 0.04 mm.
- Number of motors: 3.
- Operating voltage: 380 V, 3-phase, 50-60 Hz.
Design
- Designed specifically for MCT60 guillotine cutting machine blades and blades up to 800 mm long.
- The sharpening head moves precisely on a linear guide.

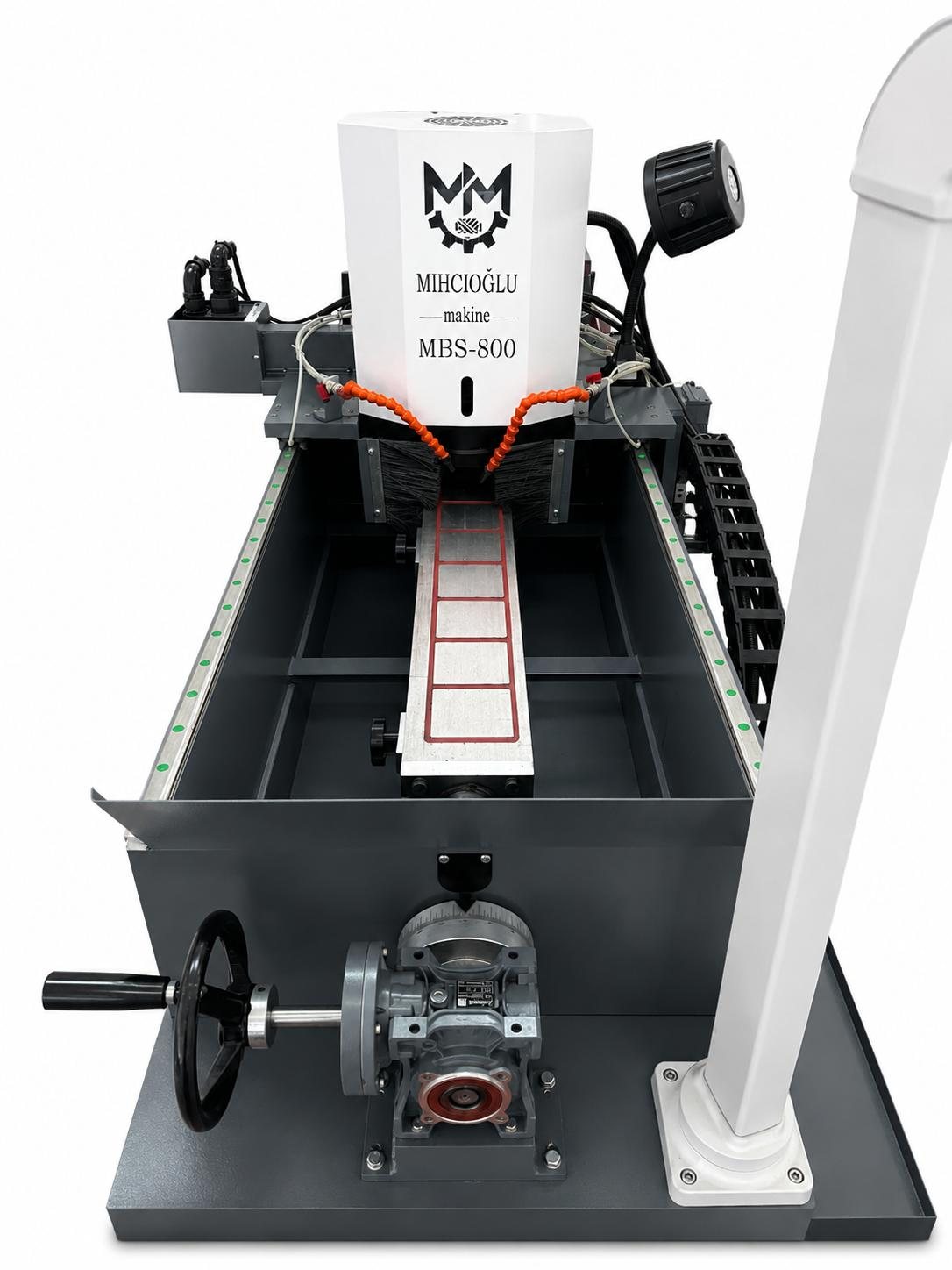

- Equipped with a 110 V magnetic table.
- Operated through a PLC touchscreen control system.
Practical Advantages
- The PLC control system applies infeed at the required position and precision.
- The number of passes is set on the screen.
- Sharpens guillotine and rotary cutting machine blades precisely.
- Returns to the home position automatically when sharpening is finished.
How It Works
- Infeed amount and number of passes are set on the PLC screen.
- The sharpening head travels along the linear guide and sharpens the blade.
- When the cycle is complete, the machine returns to the home position automatically.
Processable Materials
- Guillotine cutting machine blades
- Rotary cutting machine blades
- Industrial long cutting blades
- Maintenance, overhaul and sharpening workshops
