Model MCT60

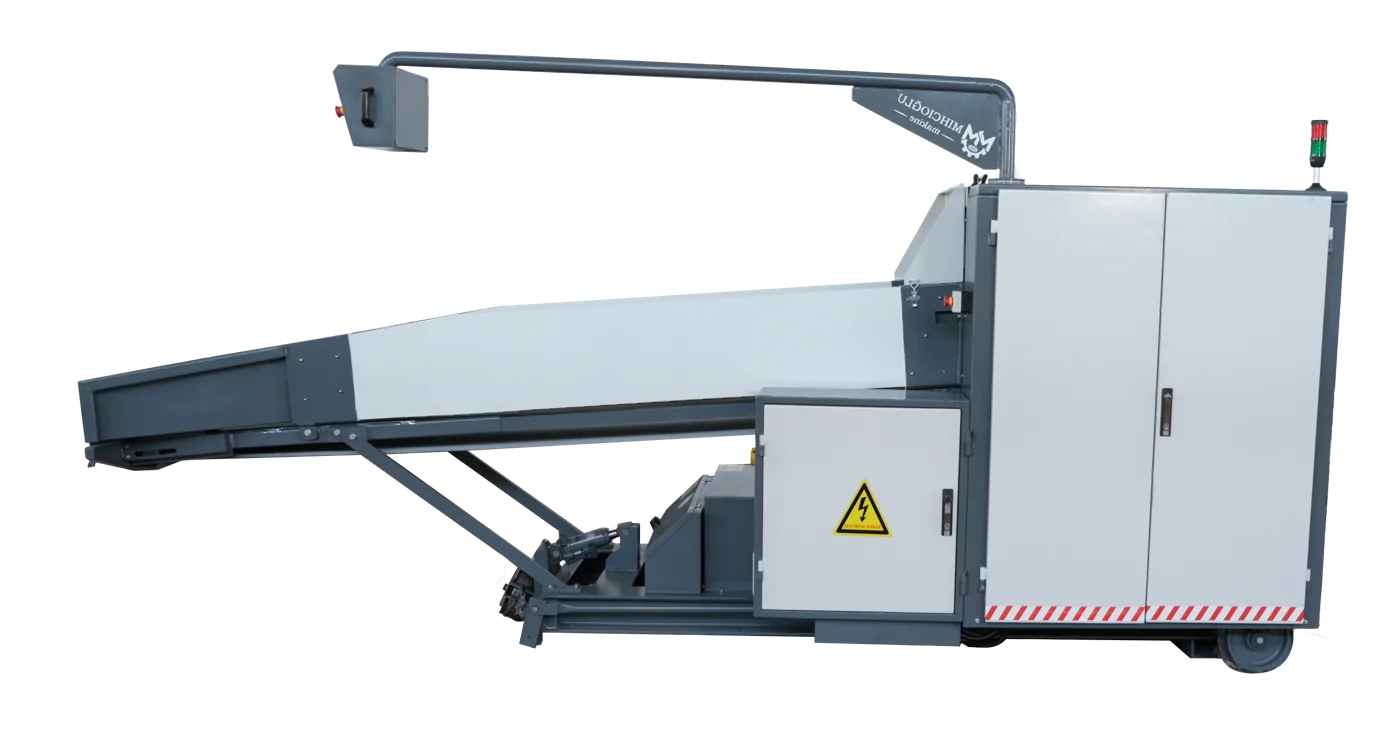

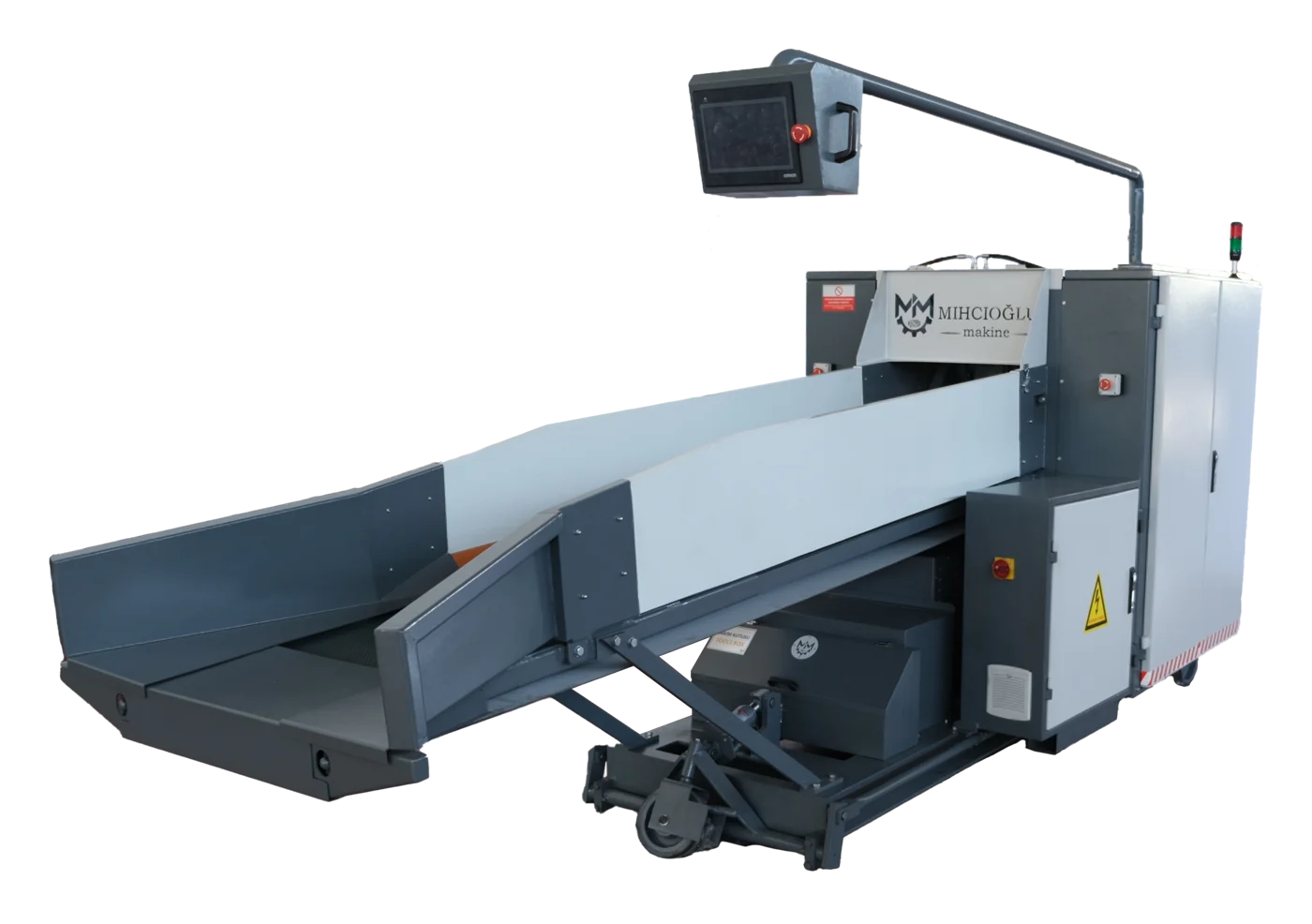

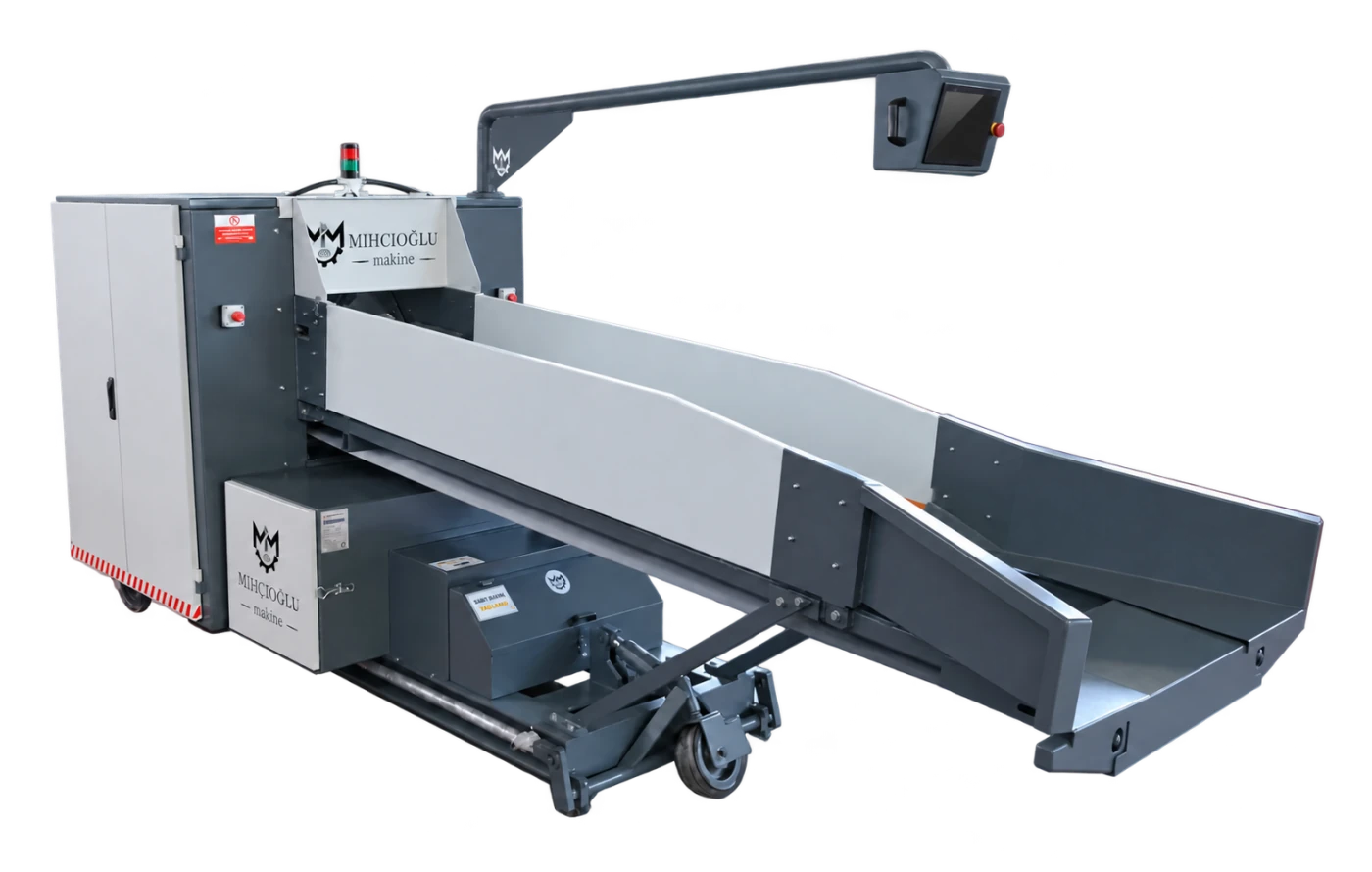

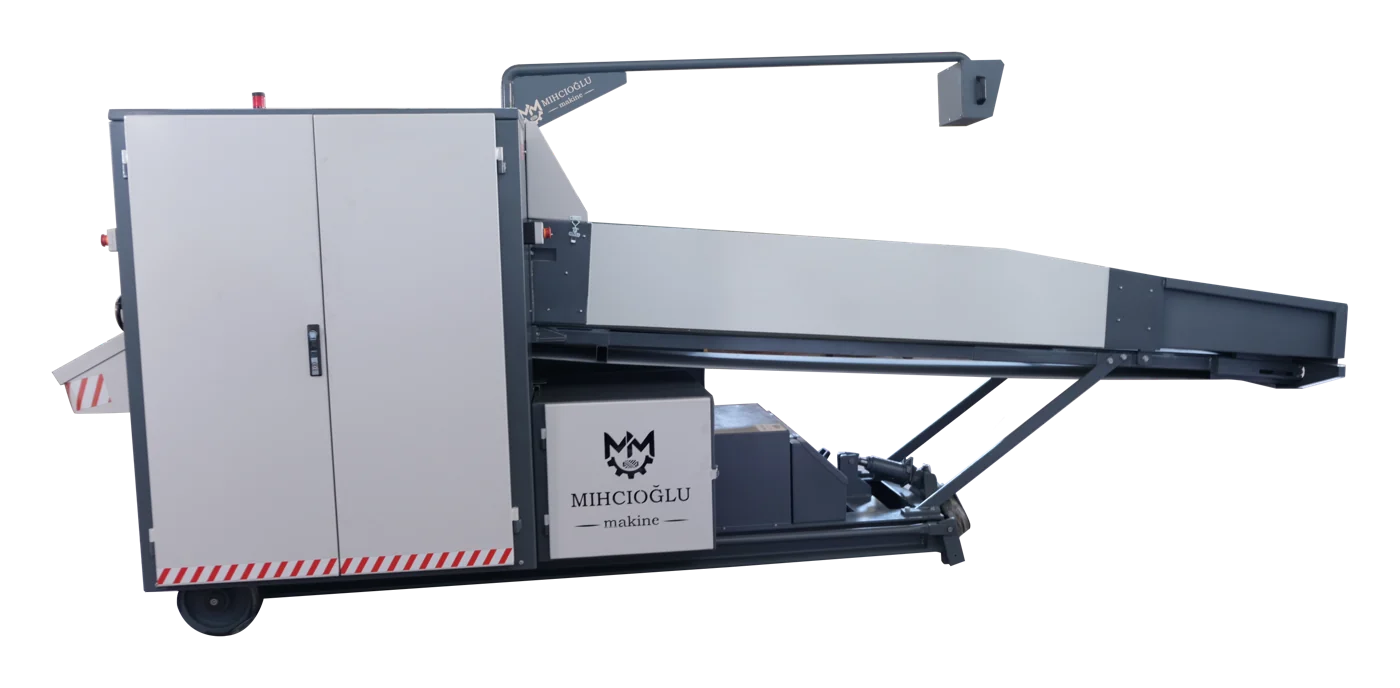

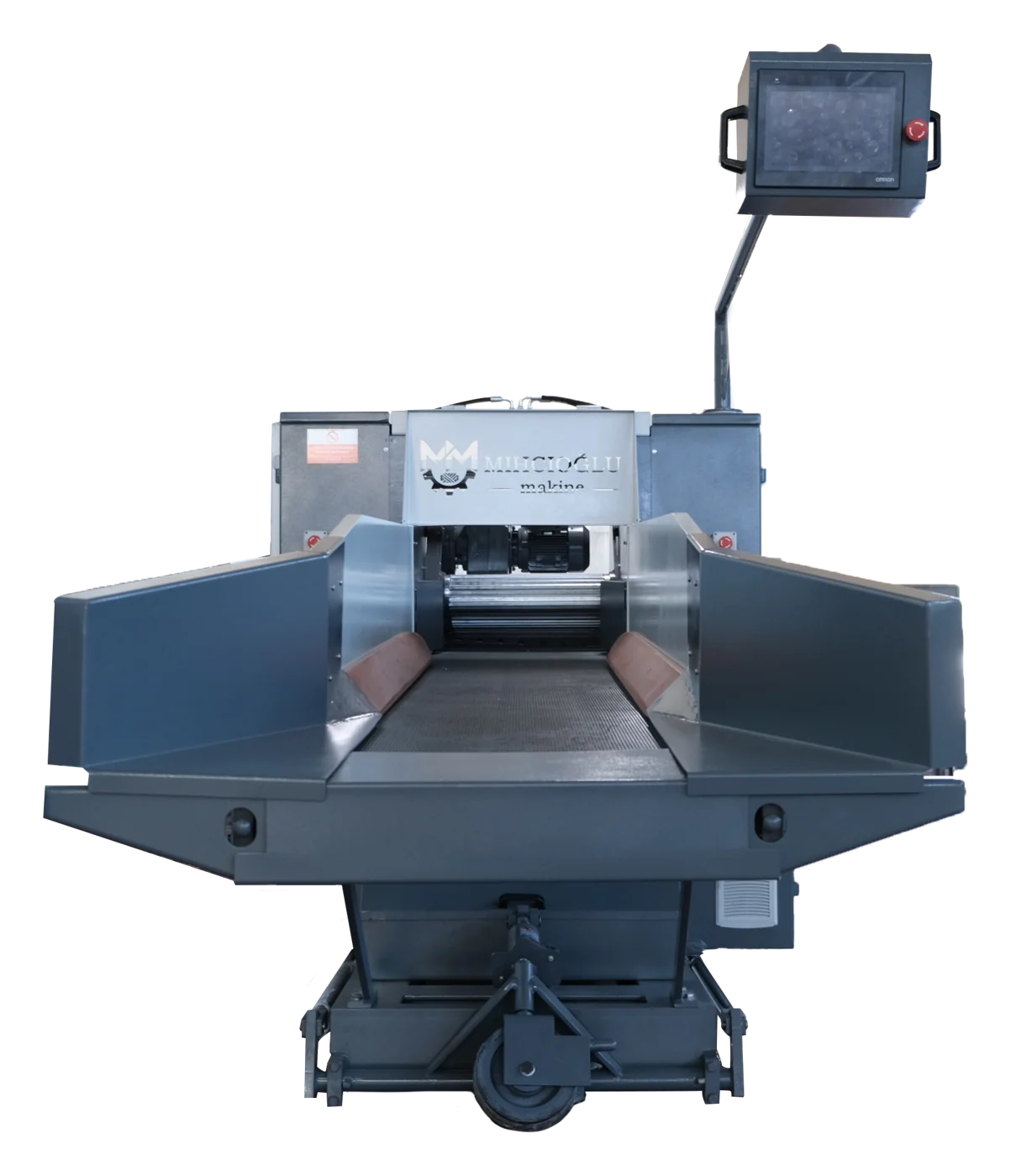

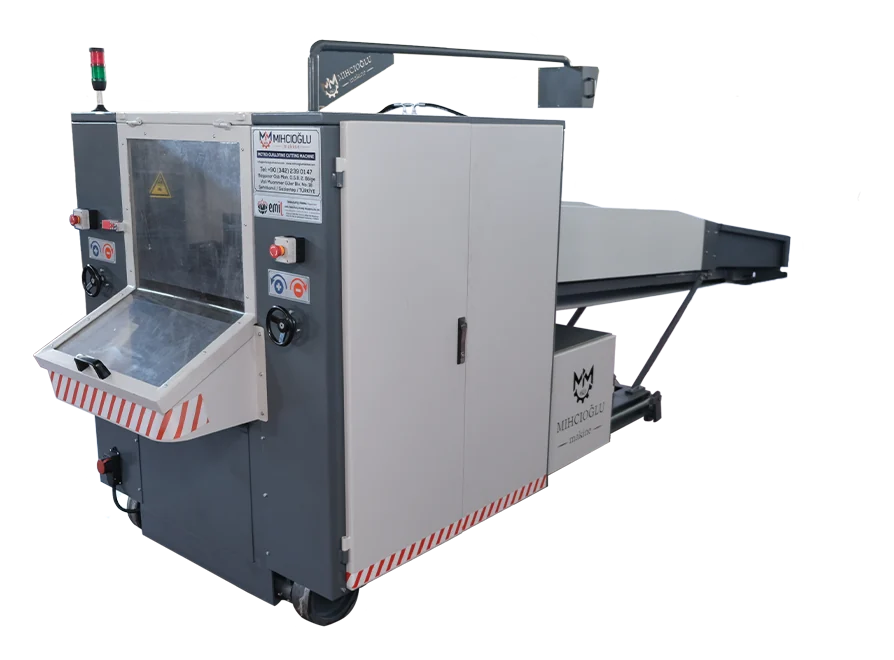

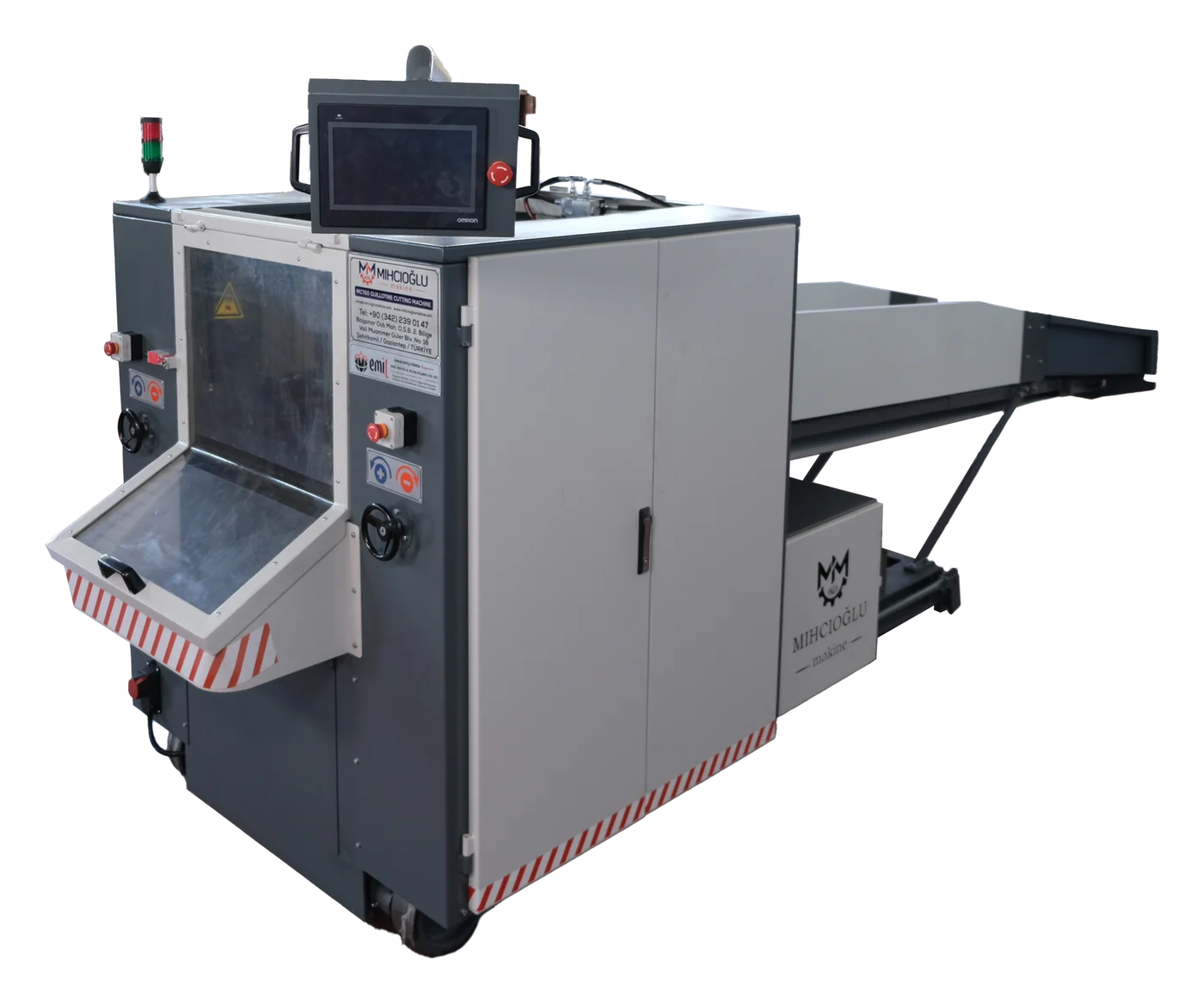

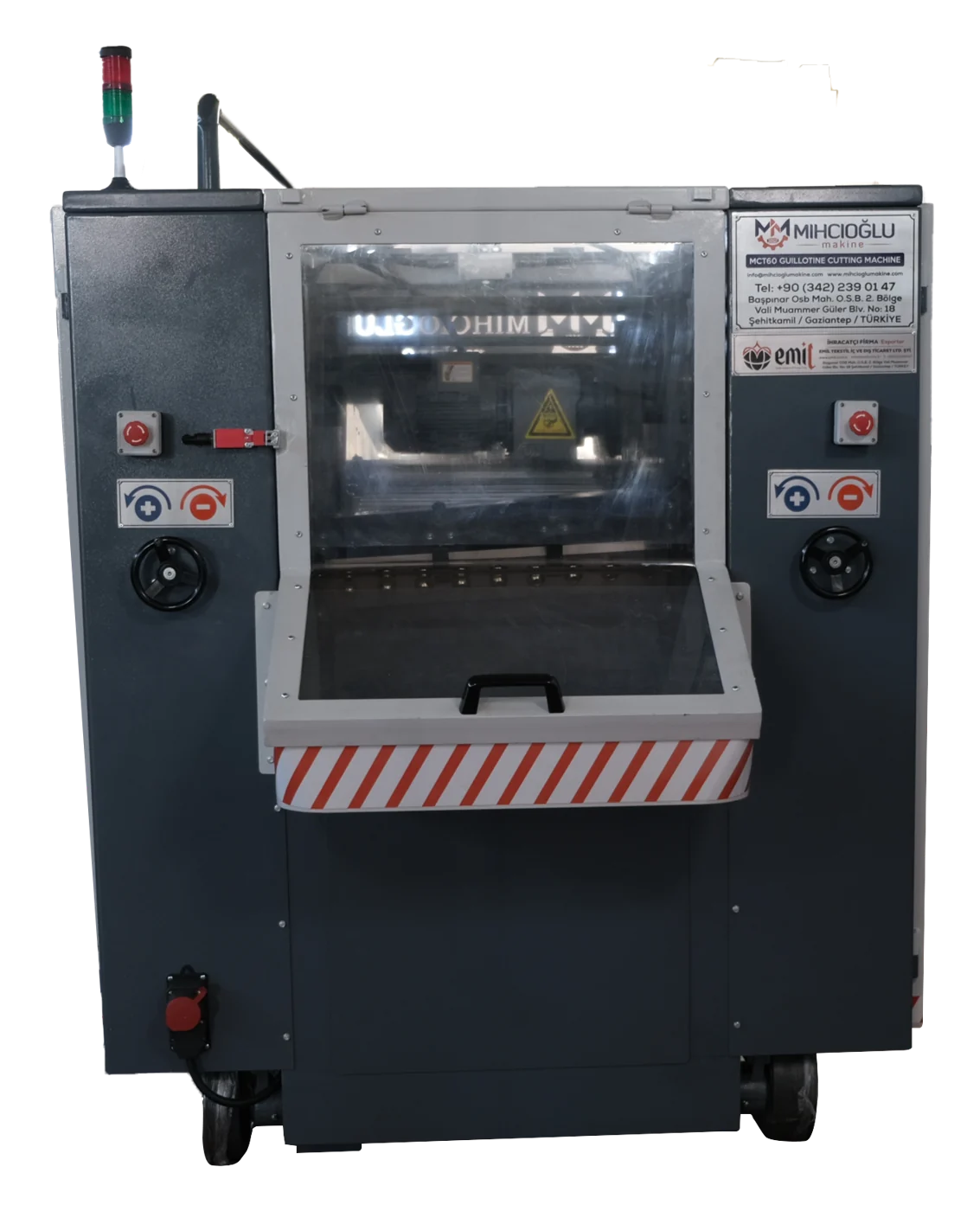

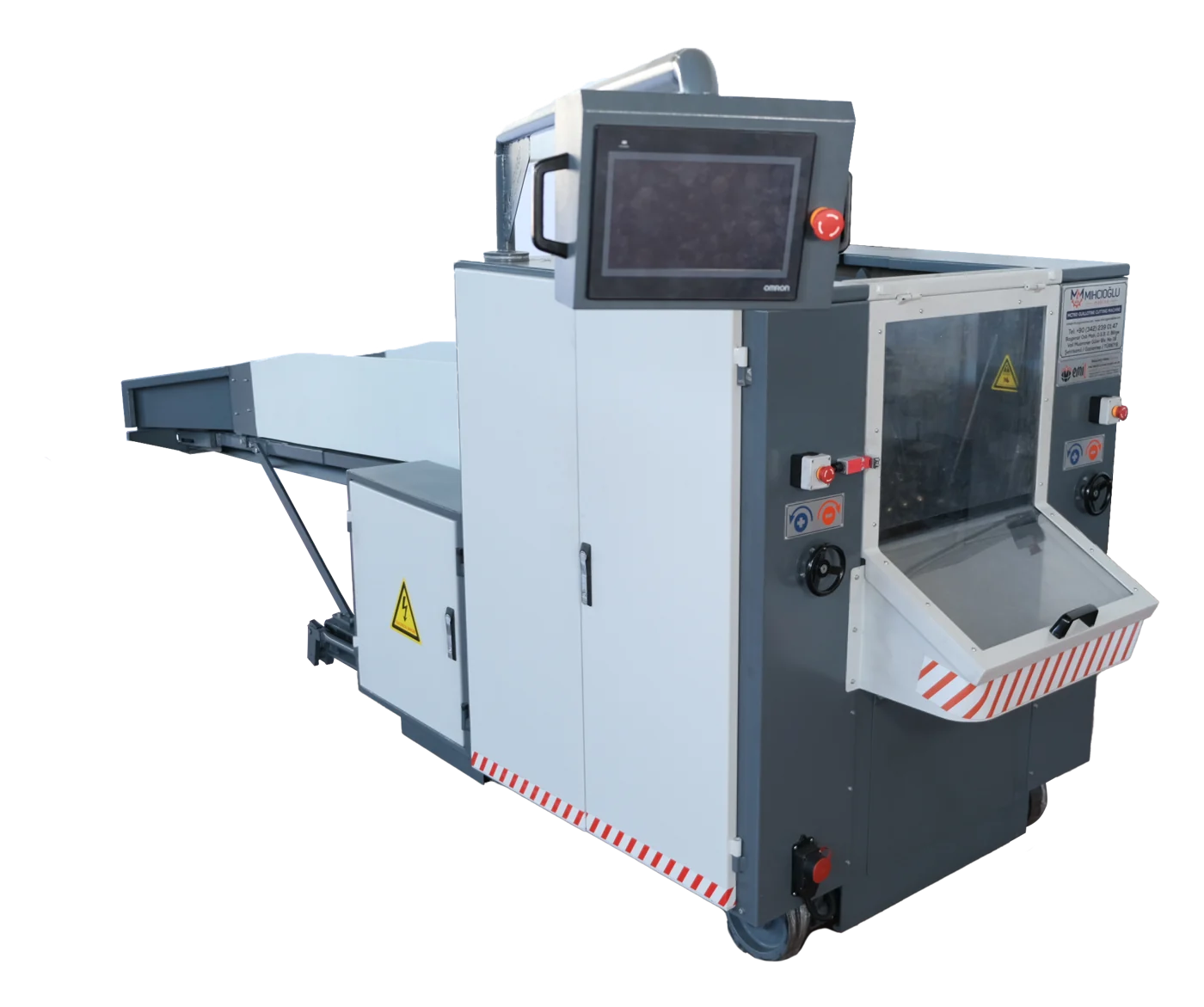

MCT60 Guillotine Cutting Machine

Name: MCT60 Guillotine Cutting Machine
Brand: Emil Foreign Trade

High-capacity guillotine cutting machine that cuts material evenly and to the desired size.

Manufacturer: Mıhçıoğlu Makine · Made in Türkiye

600 mm working width
130 / 185 / 250 cuts/min cutting speed
1000-3000 kg/h capacity
5-360 mm cutting sizes

Request a quote for this machine

Product Catalogue (PDF)

Export-ready: CE conformity, seaworthy packing and full shipping documents

Technical Specifications

Working Width	600 mm
Total Width	1470 mm
Total Length	4590 mm
Total Height	1734 mm
Cutting Width	600 mm
Cutting Speed	130 / 185 / 250 cuts/min
Installed Power	21.5 kW
Capacity	1000-3000 kg/h
Net Weight	3250 kg
Cutting Sizes	5-360 mm

The MCT60 guillotine shearing machine is the newest, high-capacity cutting machine of today. It cuts the materials placed on the conveyor belt to measure, with the cutting length set from its 10-inch control screen.

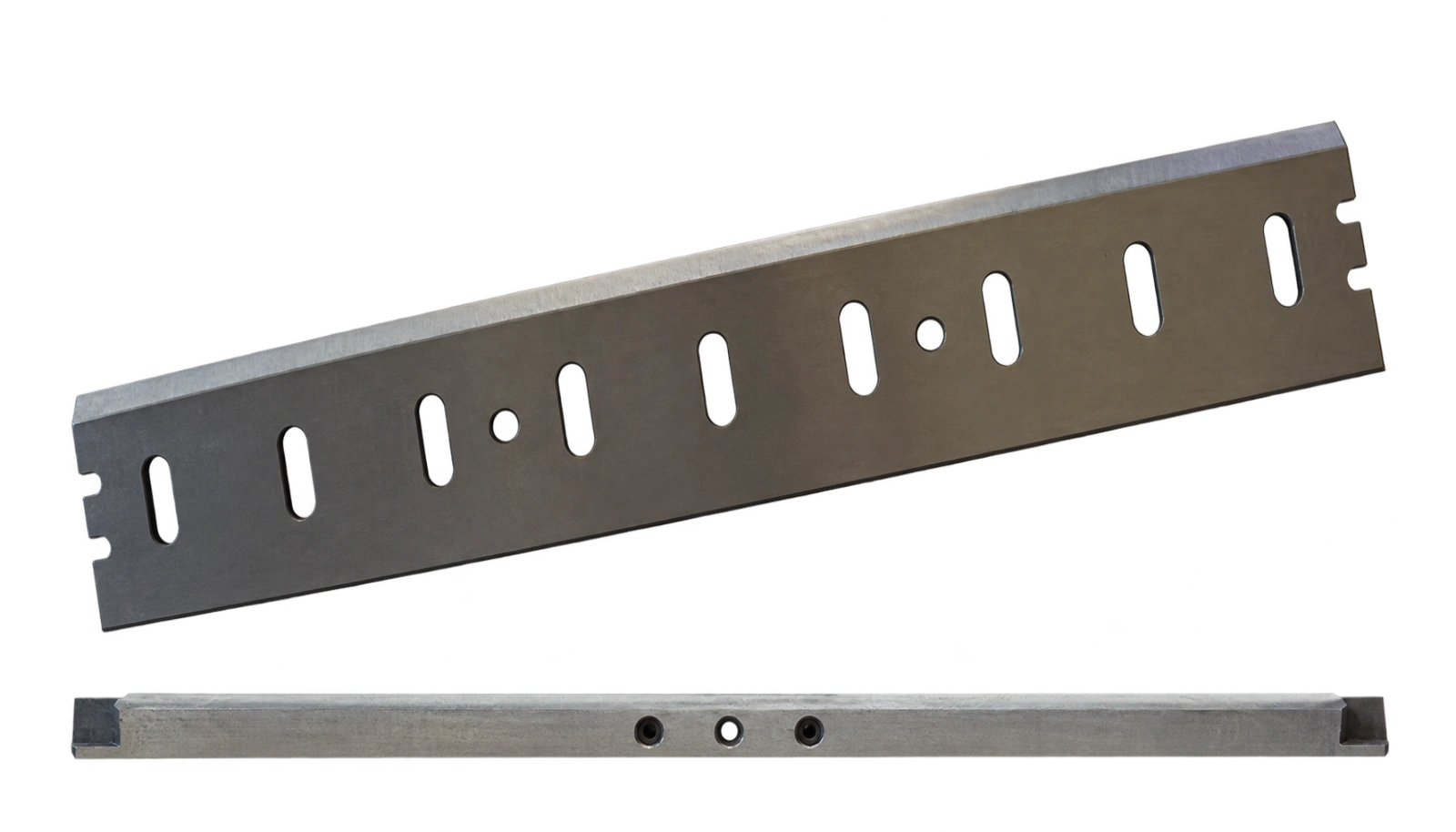

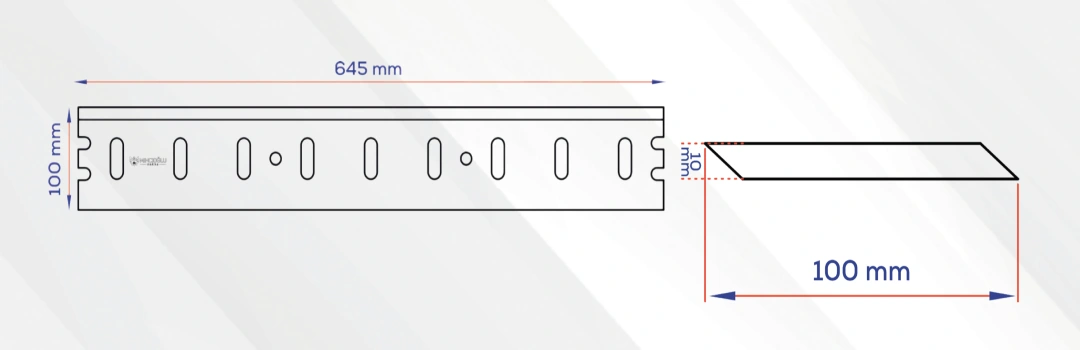

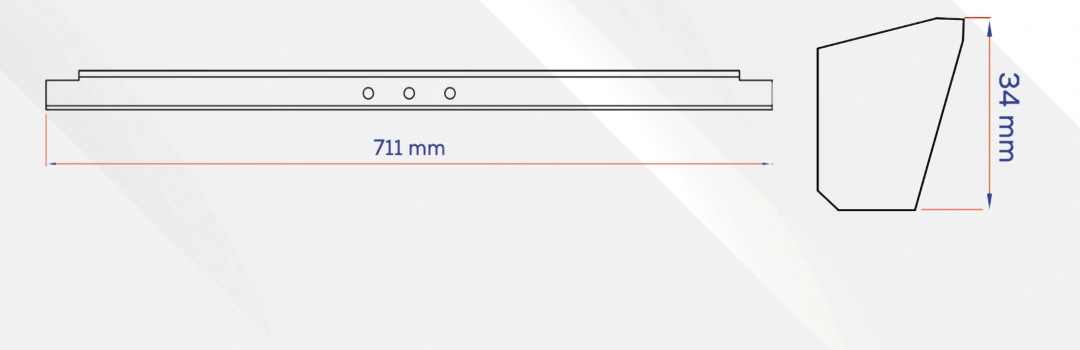

It cuts with 1 moving and 1 fixed blade driven by an eccentric motion system.

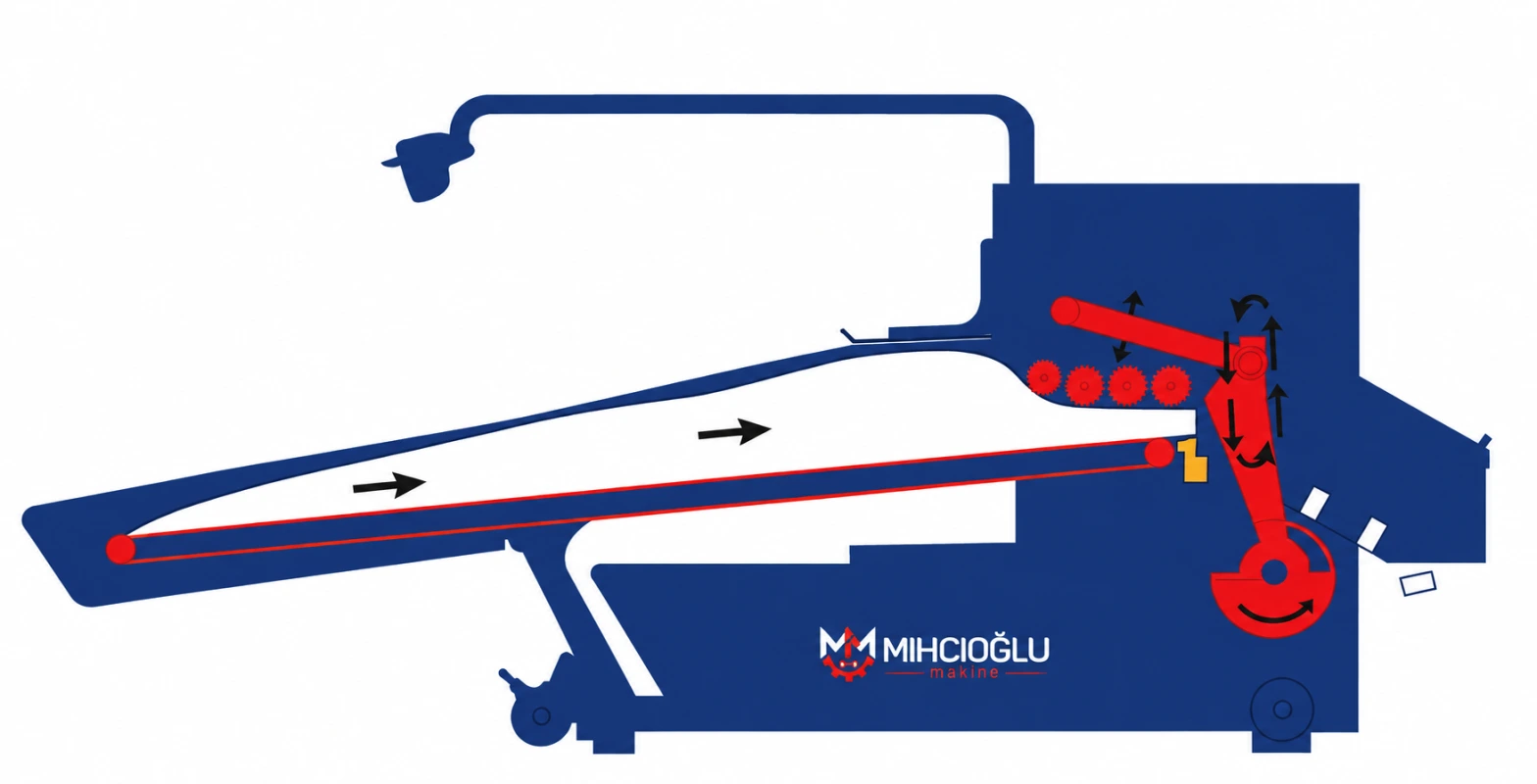

MCT60 Guillotine Cutting Machine — Operating Diagram — Operating Diagram

Key Features

For special fibres such as glass, carbon and aramid, the moving blade can be supplied in tungsten carbide.
Working and cutting width: 600 mm.
Cutting speed: 130 / 185 / 250 cuts per minute.
Cut length: 5-360 mm, depending on the material and cutting speed.
Capacity: 1000-3000 kg/h, depending on the material, cut length and feeding.
Installed power: 21.5 kW.

Design

Cut length and feed speed are set on the 10-inch screen and can be changed while the machine is running.
The metal trough at the front makes blade adjustment both simple and precise.
The feed roller unit carries the material to the blades with hardened-steel grooved compression rollers; the first roller has gripping grooves for a firmer grip.
An auxiliary chrome roller feeds the material to the blade more effectively, and anti-jamming yellow brass is used at the blade edge.

Practical Advantages

Slight wear on the cutting edges during operation is compensated within a few seconds.
Blades are sharpened on the MBS-800 blade sharpening machine; the moving blade can be used on both sides.

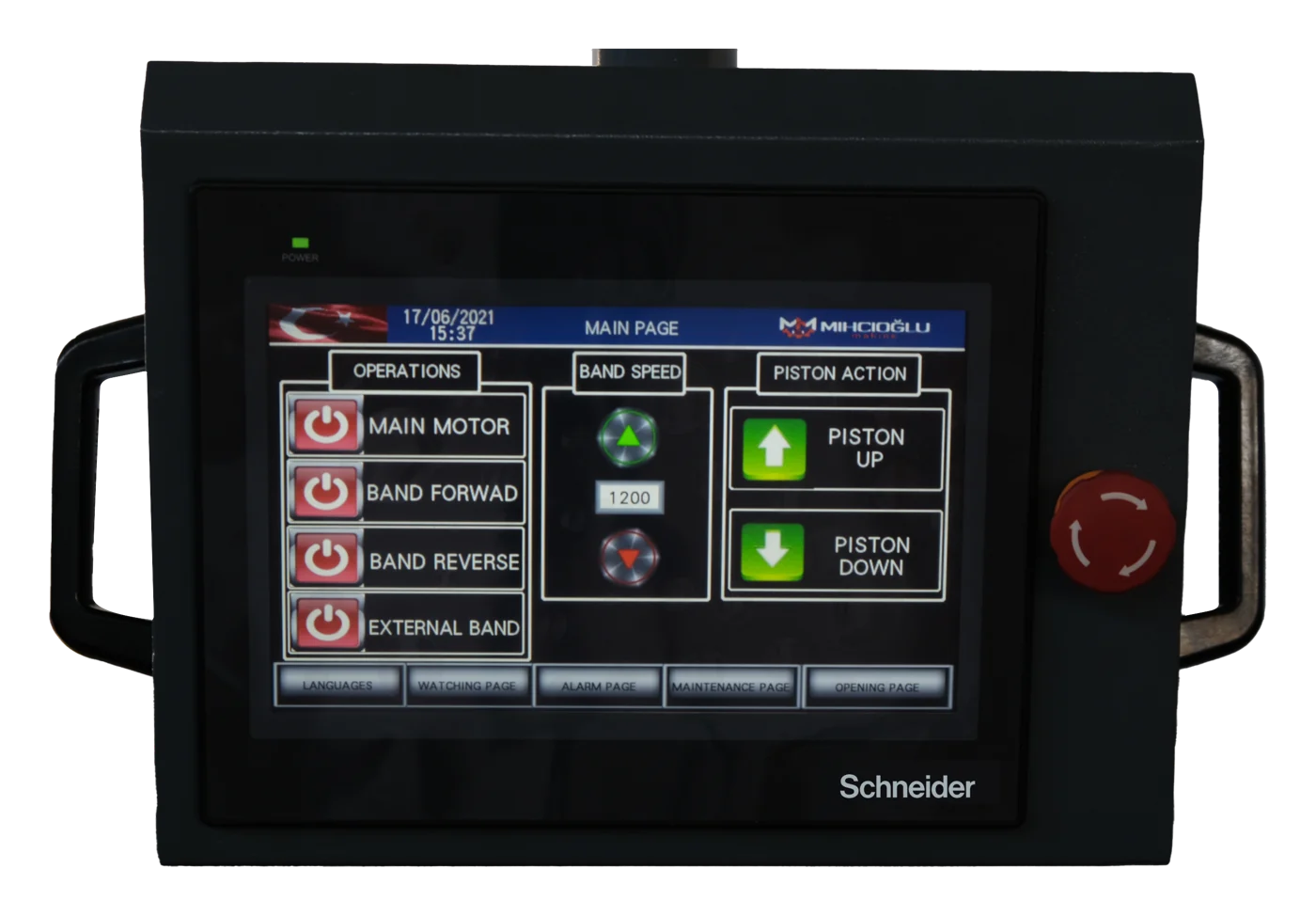

The swivelling control panel gives the operator access to all controls and shows machine faults on the screen.
The inclination of the roller unit is quickly adjusted to the material being cut.
The feed apron is quickly removed; its design keeps material from getting between the belt and the side walls.
The machine is easily positioned with the help of its wheels.
The machine's loading belt can be run in reverse with a single button.
The conveyor belt can be started and stopped at any time with the external belt button on the screen.

How It Works

Material is placed on the feed conveyor; the grooved rollers compress it and draw it towards the blades.
The shearing action between the moving and the fixed blade gives a clean, precise cut without burrs or melting.
Roller settings ensure even feeding of material of every type and shape.
In case of overload the conveyor belt stops automatically; the reverse function clears blockages easily.
