Model MCB-800
MCB-800 Carrier Belt
MCT60 accessory: speed-controlled pallet belt for the machine outfeed and transfer to a second machine.
Manufacturer: Mıhçıoğlu Makine · Made in Türkiye
- MCT60 accessory
- 800 mm working width
- Custom-made pallet belt
- Speed controlled
Export-ready: CE conformity, seaworthy packing and full shipping documents
Technical Specifications
| Working Width | 800 mm |
|---|---|
| Number of Motors | 1 pcs |
| Installed Power | 1.5 kW |
| Working Voltage | 380 V, 3 phase, 50-60 Hz |
| Net Weight | 250 kg |

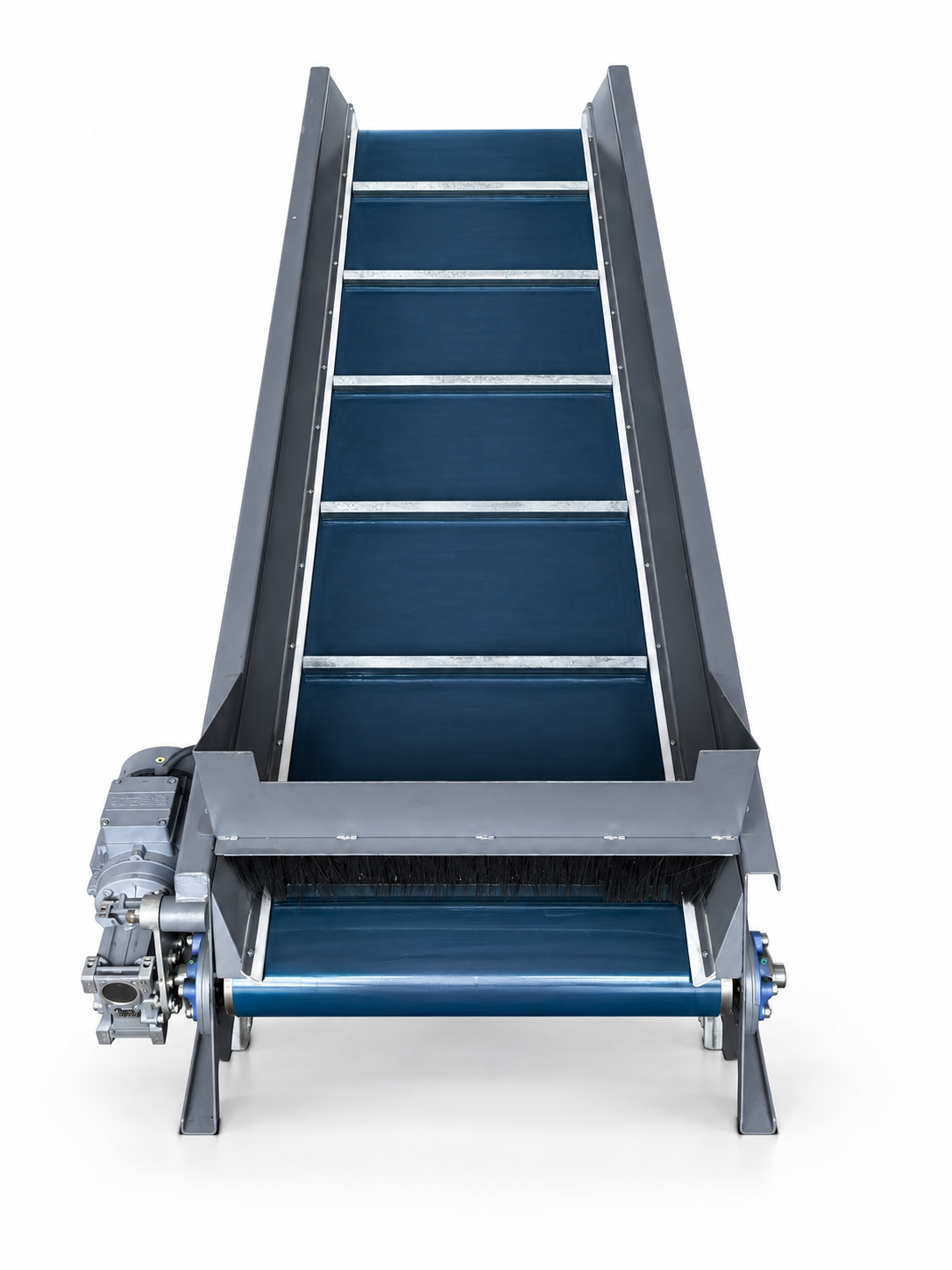

Designed specially for the MCT60 guillotine shearing machine, the MCB-800 is a custom-made pallet belt for the machine outfeed and the transfer to a second machine.
It is produced with speed control.
Key Features
- Working width: 800 mm.
- Number of motors: 1.
- Installed power: 1.5 kW.
- Operating voltage: 380 V, 3-phase, 50-60 Hz.
- Belt width: 700 mm.
- Hopper outer width: 800 mm.
- Belt speed: 57 m/min at 50 Hz, 46 m/min at 60 Hz.
- Cleated conveyor belt that carries fibres upwards without slipping.
- The conveyor is mounted on four swivel castors.
- An anti-wrap system on the rollers keeps fibres from winding into the drive mechanism.
- Feed belt tension is adjusted quickly.
- The tension roller is removed quickly for easy cleaning and maintenance.
- All moving mechanisms are mounted on ball bearings.
- The conveyor is driven by a three-phase, fan-cooled motor with IP55 protection.
Design
- Designed specifically for guillotine cutting machines.
- A cleated, custom-built belt.
- Manufactured with speed control.
Use
- Used at the front outlet of the machine.
- Provides the transfer to the second machine.
