Model MCT50

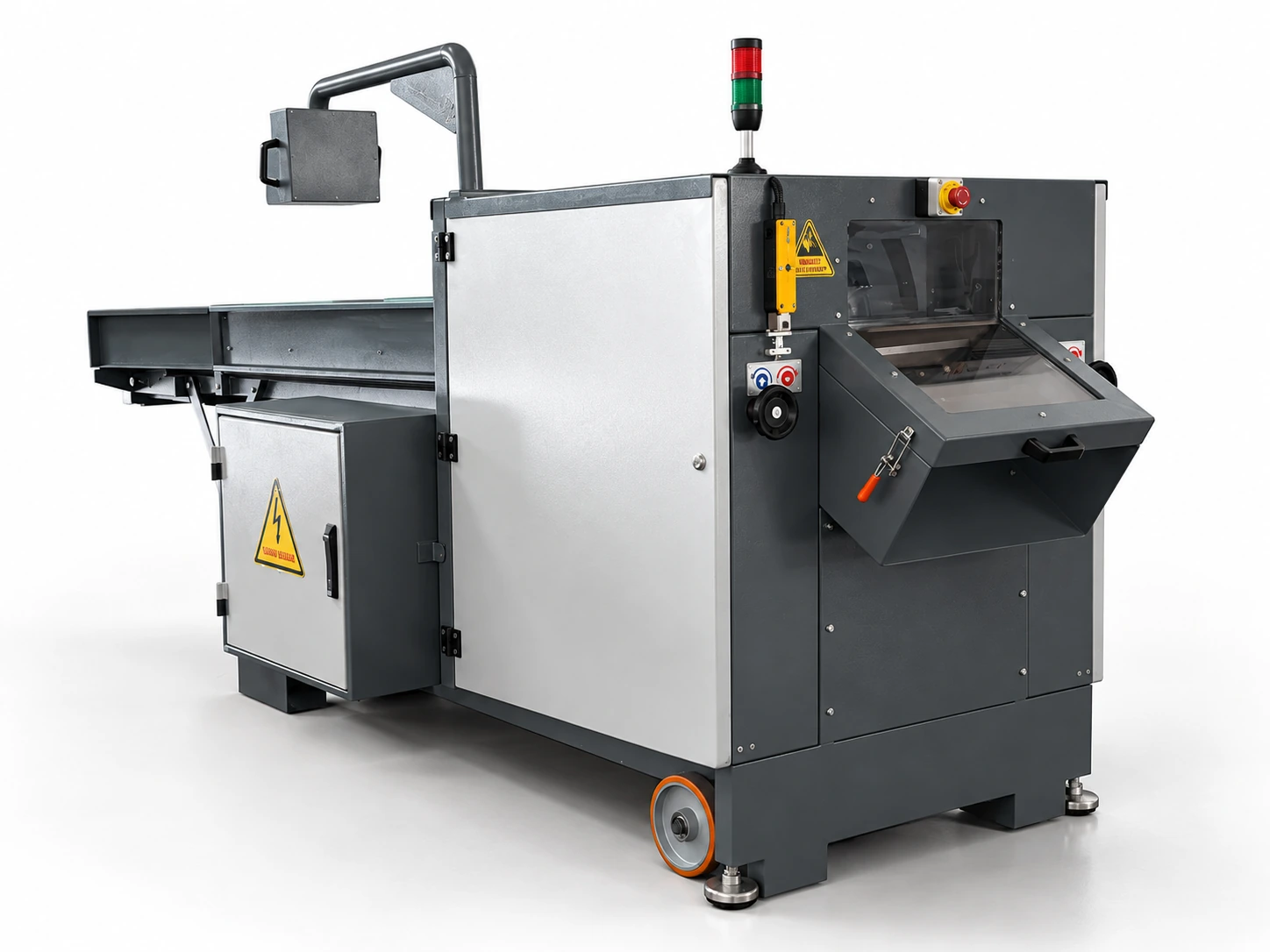

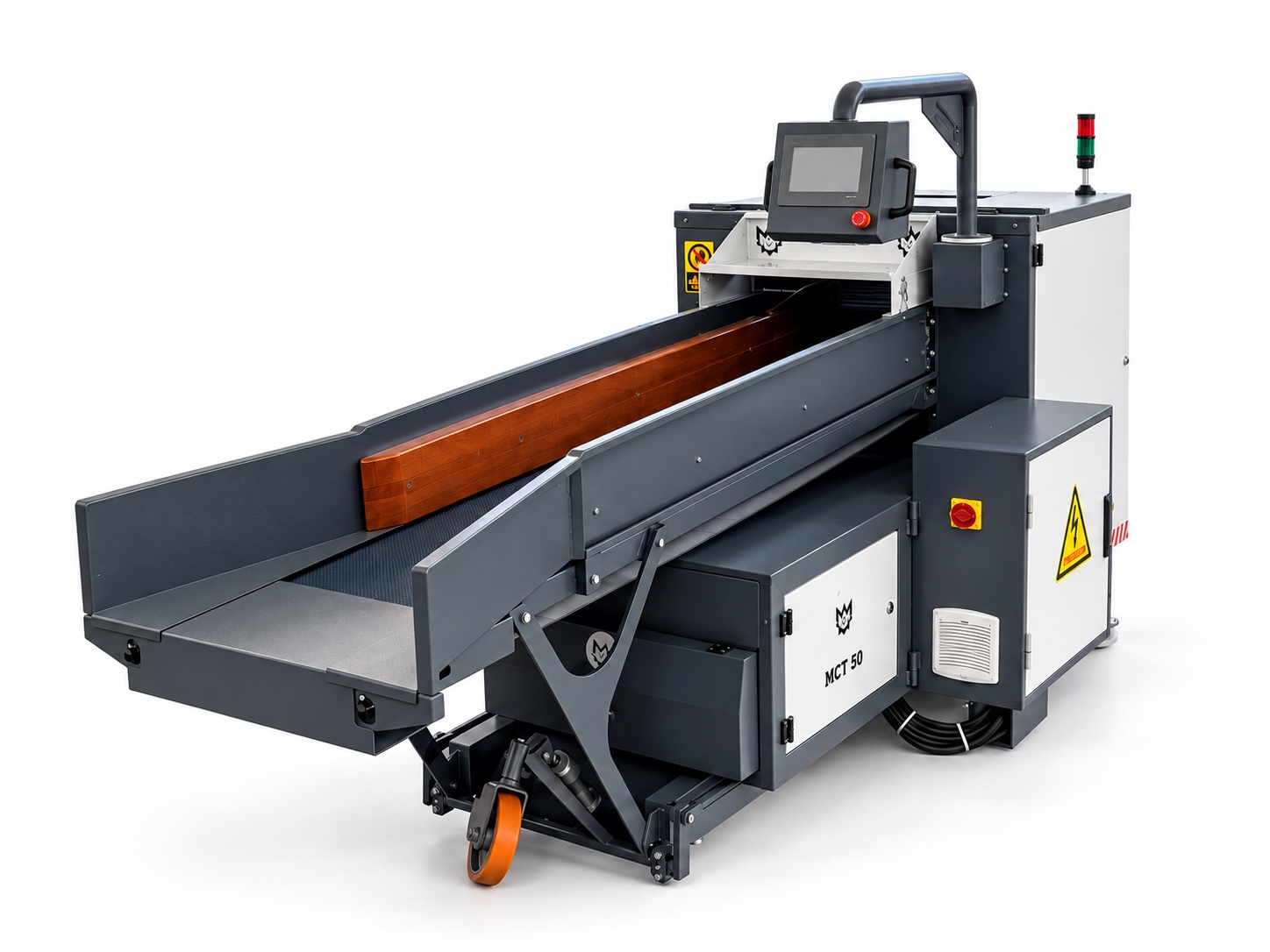

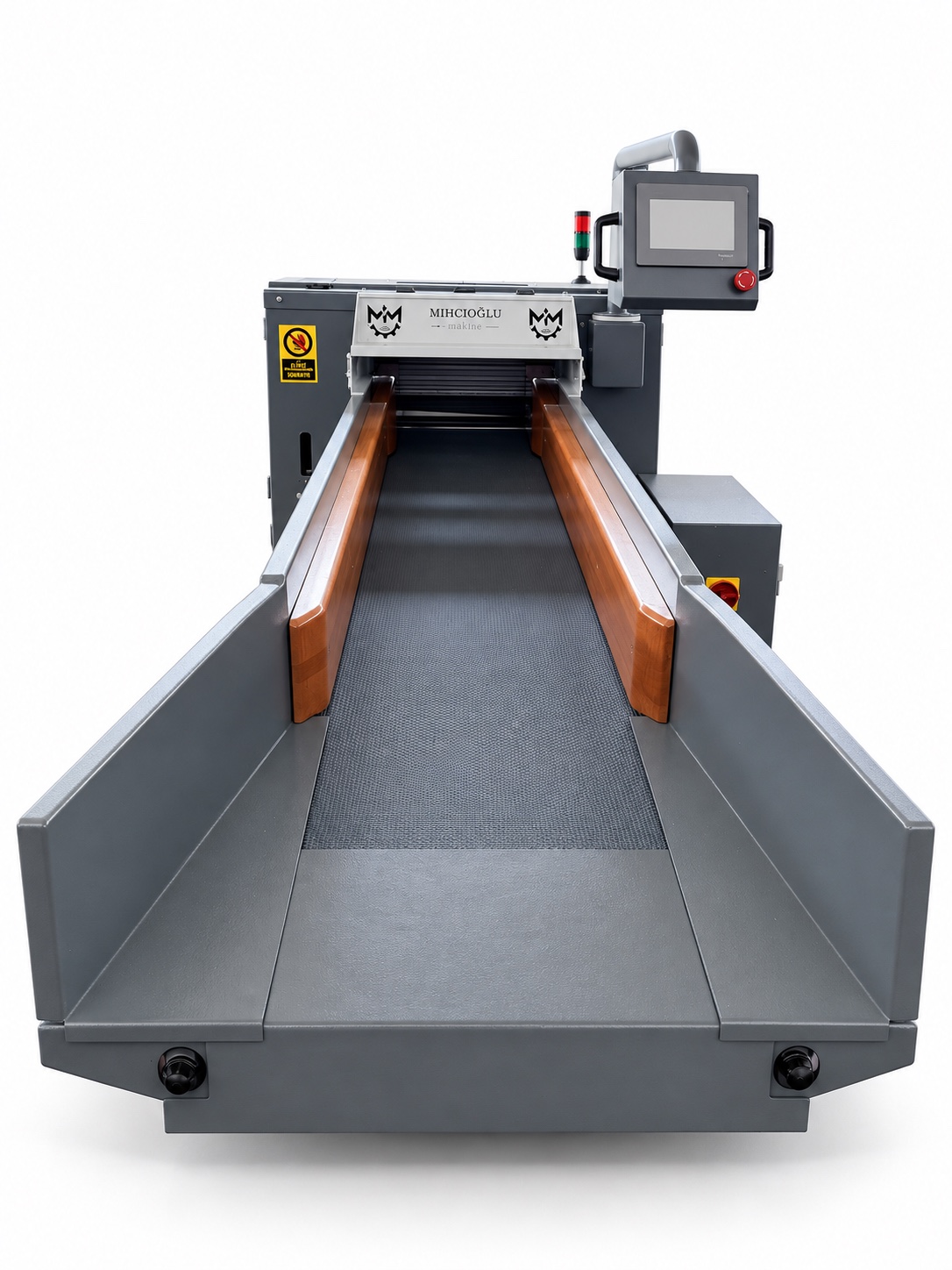

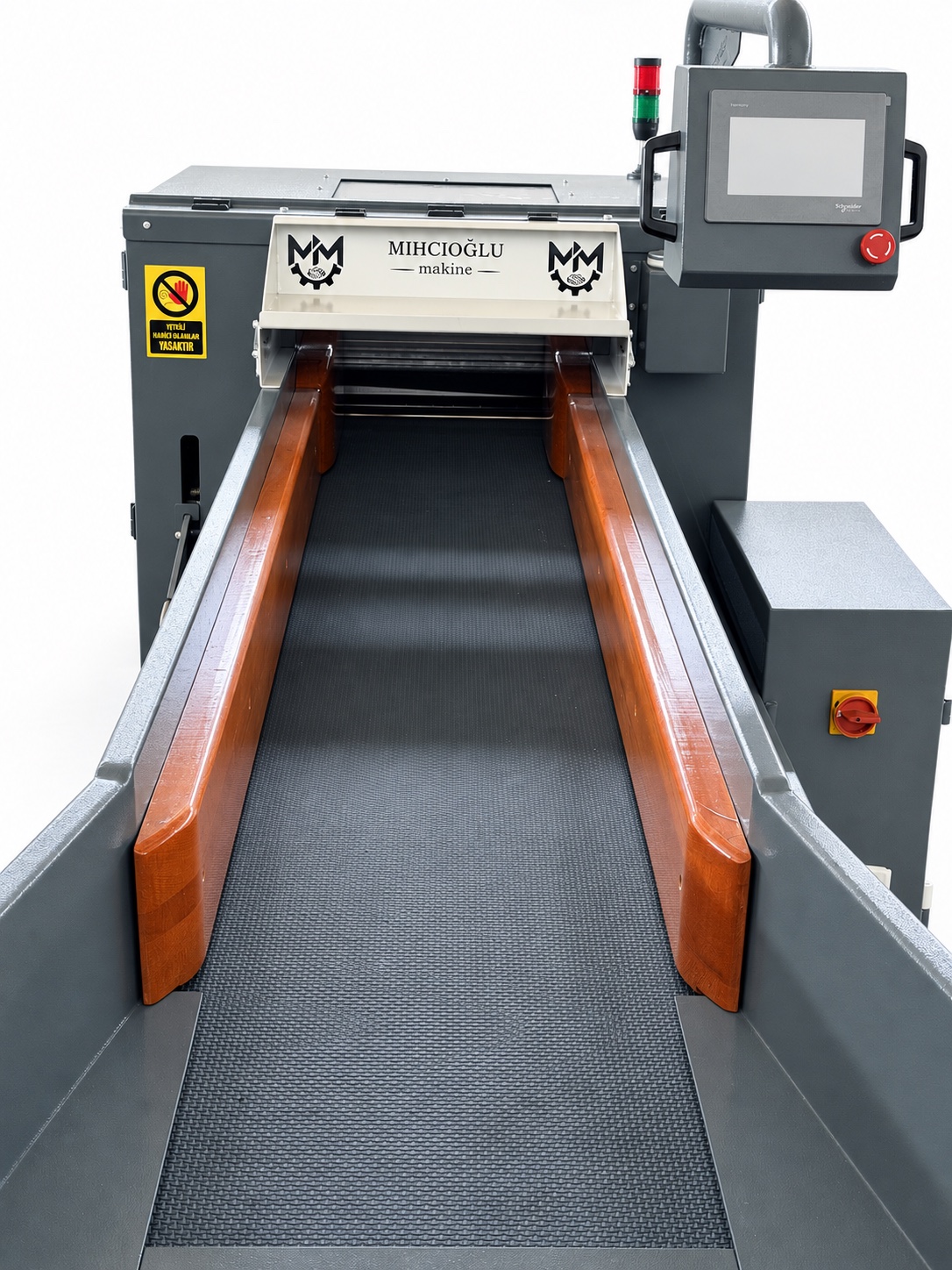

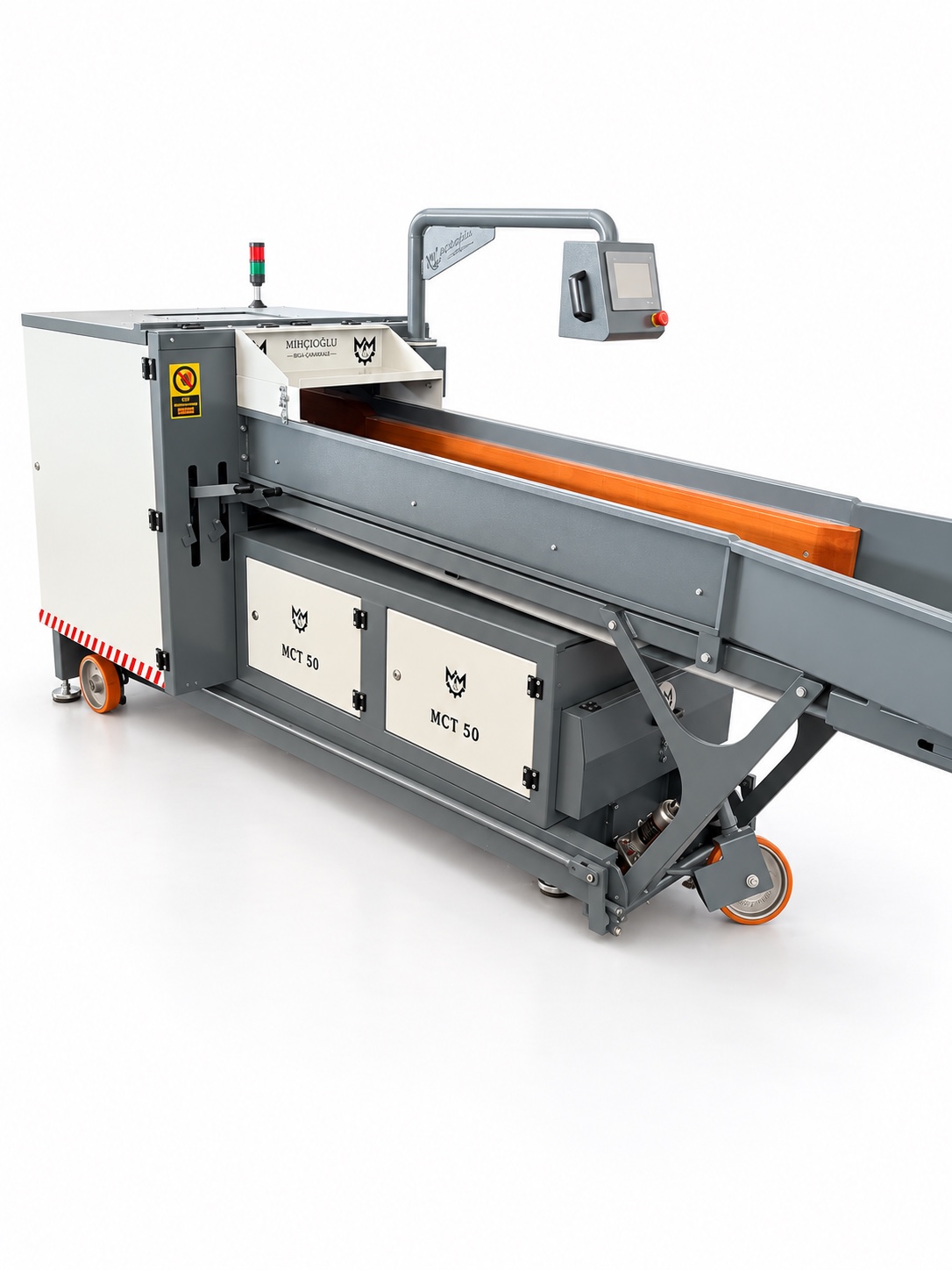

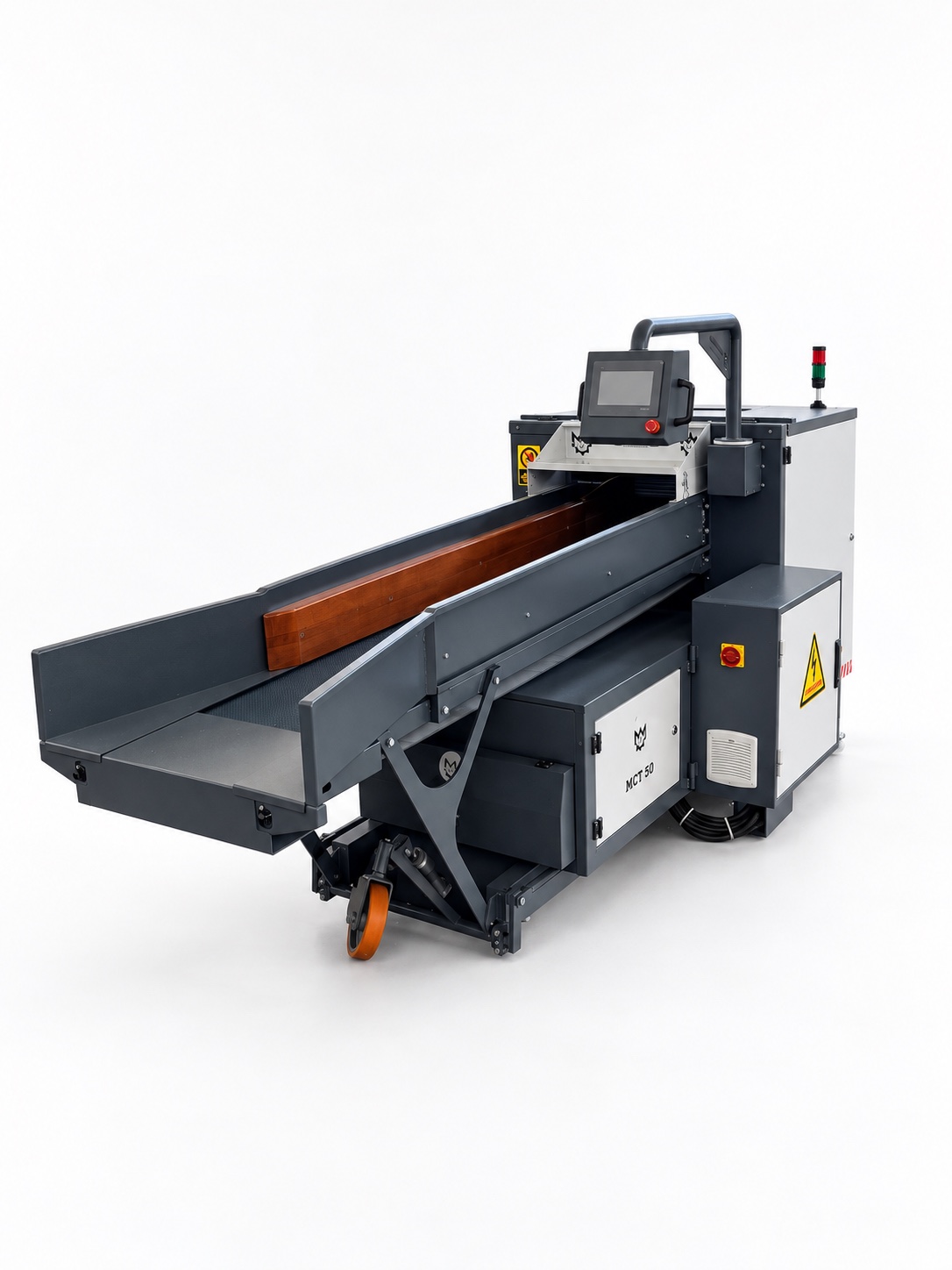

MCT50 Guillotine Cutting Machine

Name: MCT50 Guillotine Cutting Machine
Brand: Emil Foreign Trade

Mid-capacity guillotine cutting machine with 500 mm working width.

Manufacturer: Mıhçıoğlu Makine · Made in Türkiye

500 mm working width
130-400 rpm cutting speed
100-1000 kg/h capacity
2-130 mm cutting sizes

Request a quote for this machine

Product Catalogue (PDF)

Export-ready: CE conformity, seaworthy packing and full shipping documents

Technical Specifications

Working Width	500 mm
Total Width	1055 mm
Total Length	3540 mm
Total Height	1340 mm
Cutting Width	500 mm
Cutting Speed	130-400 rpm
Installed Power	8.5 kW
Capacity	100-1000 kg/h
Net Weight	2500 kg
Cutting Sizes	2-130 mm

The MCT50 guillotine cutting machine is the newest, high-capacity cutting machine for today's conditions. It cuts the material placed on the conveyor belt in a measured way, with the cut length set on the 7-inch screen.

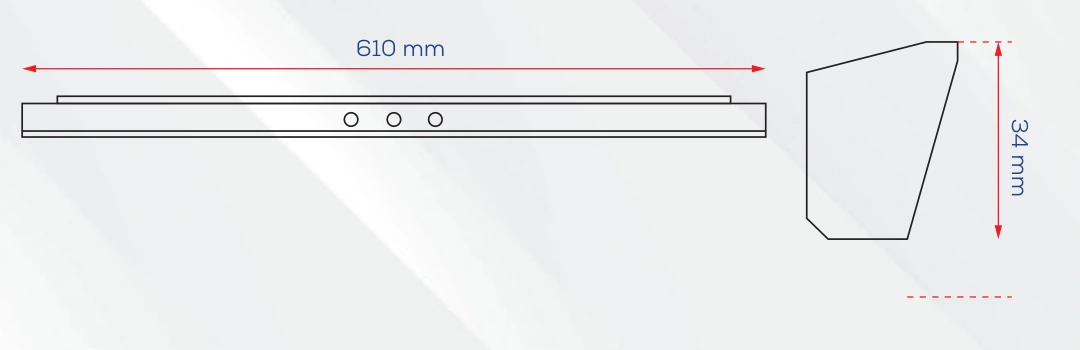

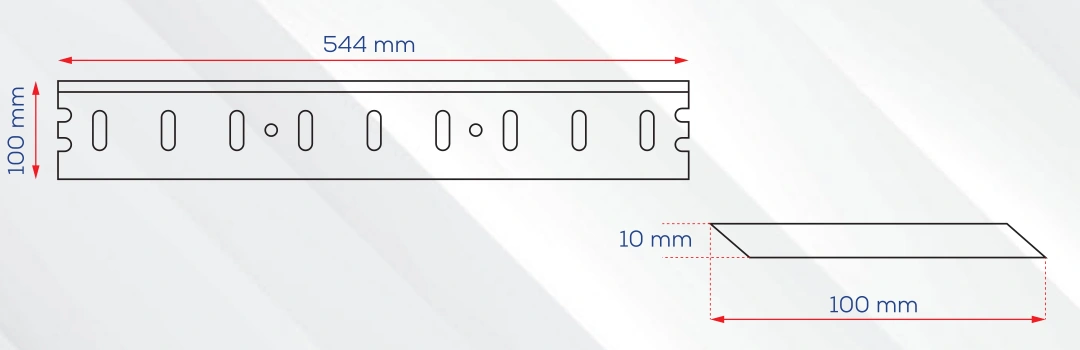

It cuts with one moving and one fixed blade driven by an eccentric motion system.

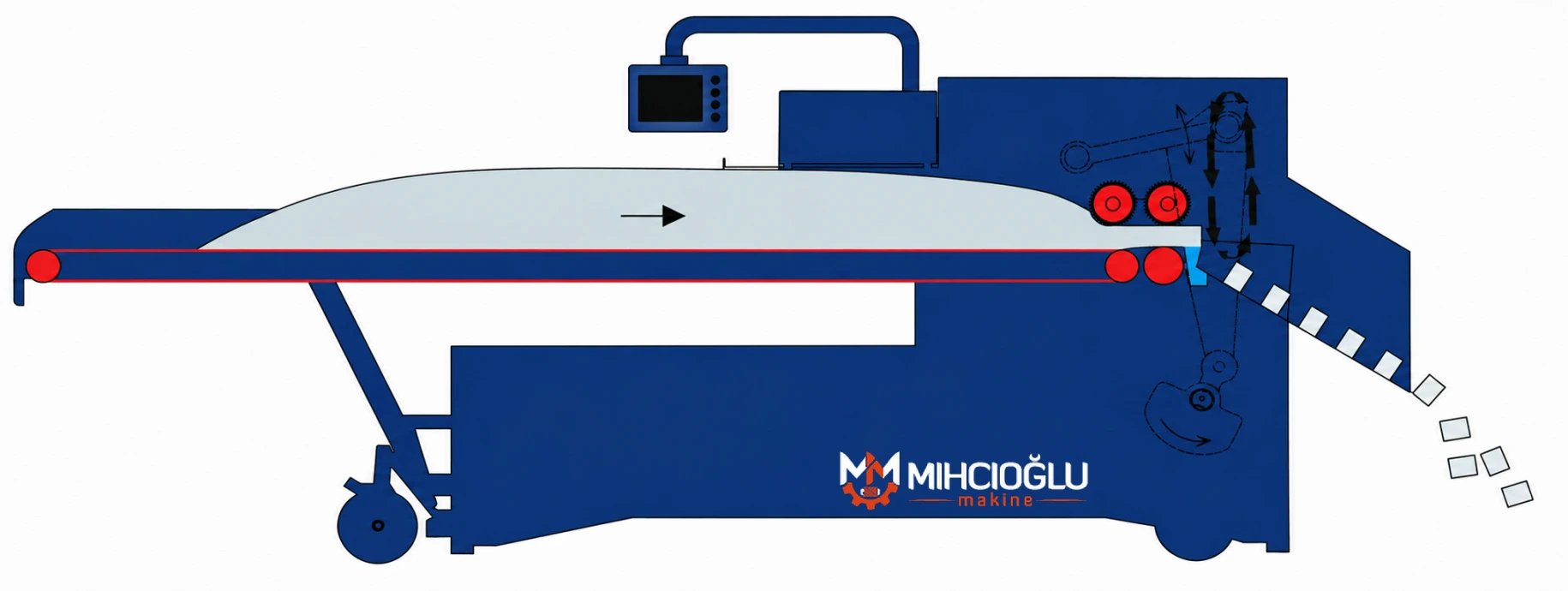

MCT50 Guillotine Cutting Machine — Operating Diagram — Operating Diagram

Key Features

Working and cutting width: 500 mm.
Cutting speed: 130-400 rpm.
Cut length: 2-130 mm, depending on the material and cutting speed.
Capacity: 100-1000 kg/h, depending on the material, cut length and feeding.
Installed power: 8.5 kW.
Offers the same shearing principle as the MCT60 in a more compact body.

Design

Cut length and feed speed are set on the 7-inch screen and can be changed while the machine is running.
The easy-opening front cover makes blade adjustment both simple and precise.
The feed roller unit carries the material to the blades with hardened-steel grooved compression rollers.
An auxiliary chrome roller feeds the material to the blade more effectively, and anti-jamming yellow brass is used at the blade edge.

Practical Advantages

Slight wear on the cutting edges during operation is compensated within a few seconds.

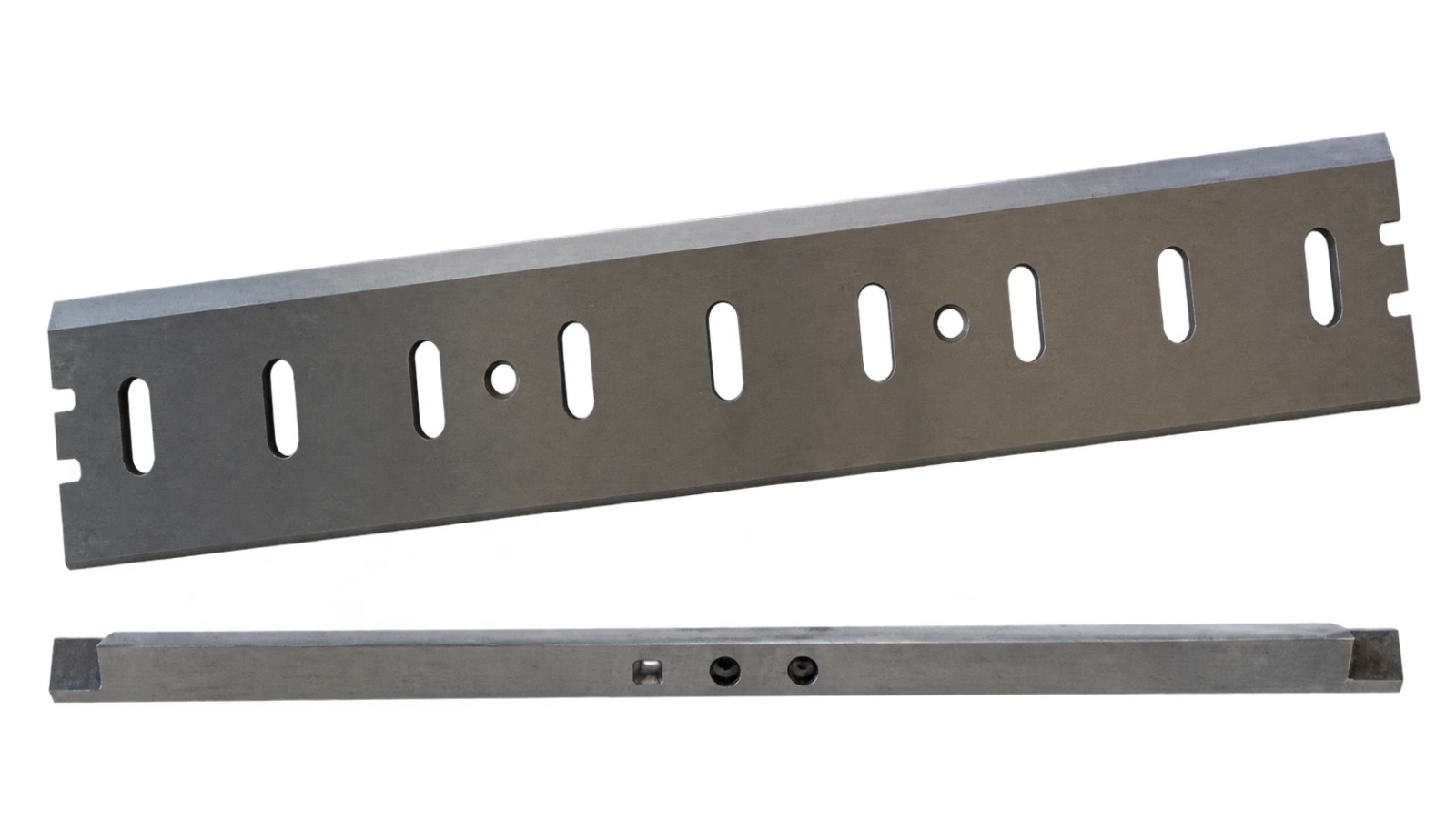

Blades are sharpened on the MBS-800 blade sharpening machine; the moving blade can be used on both sides.

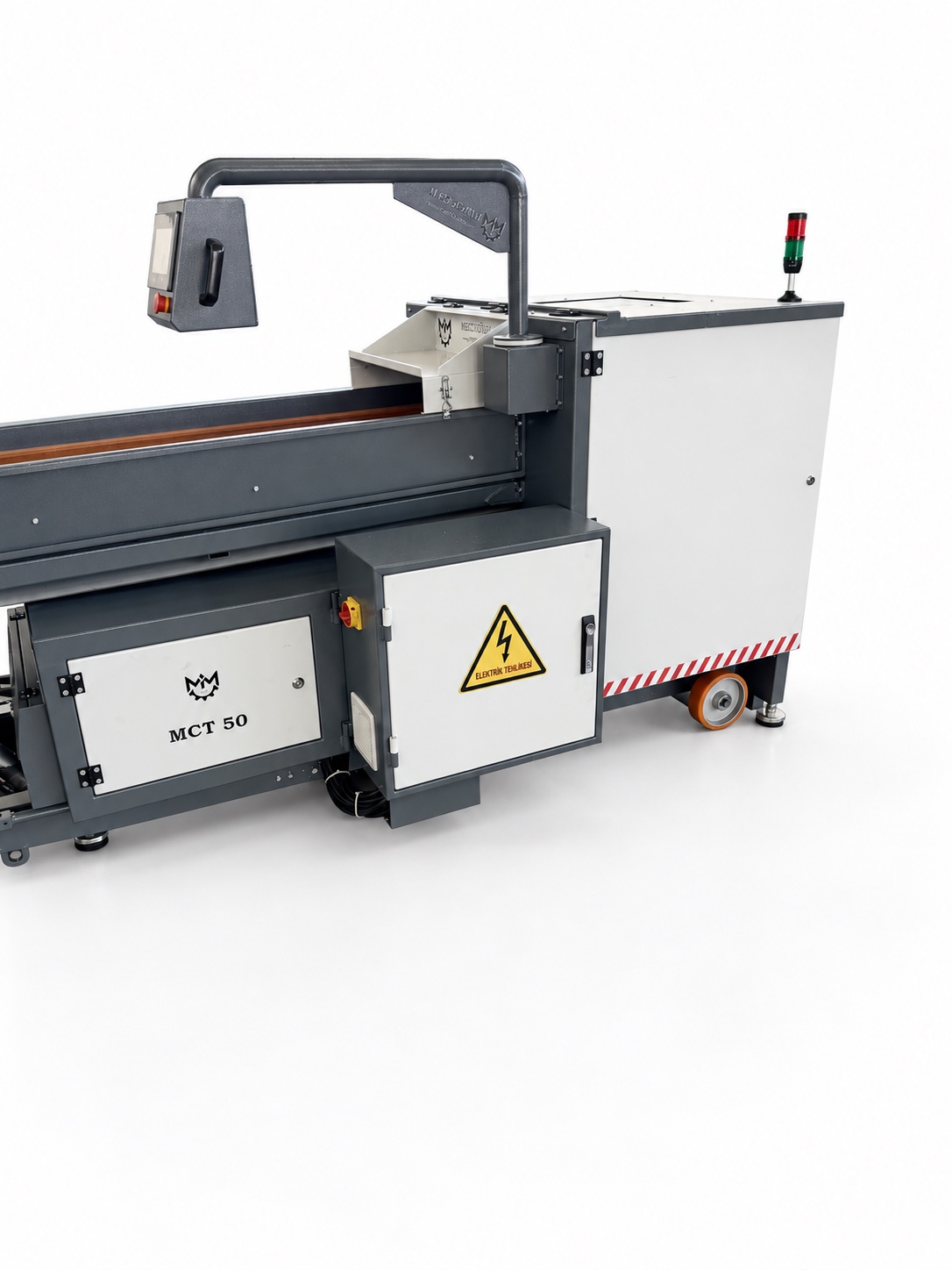

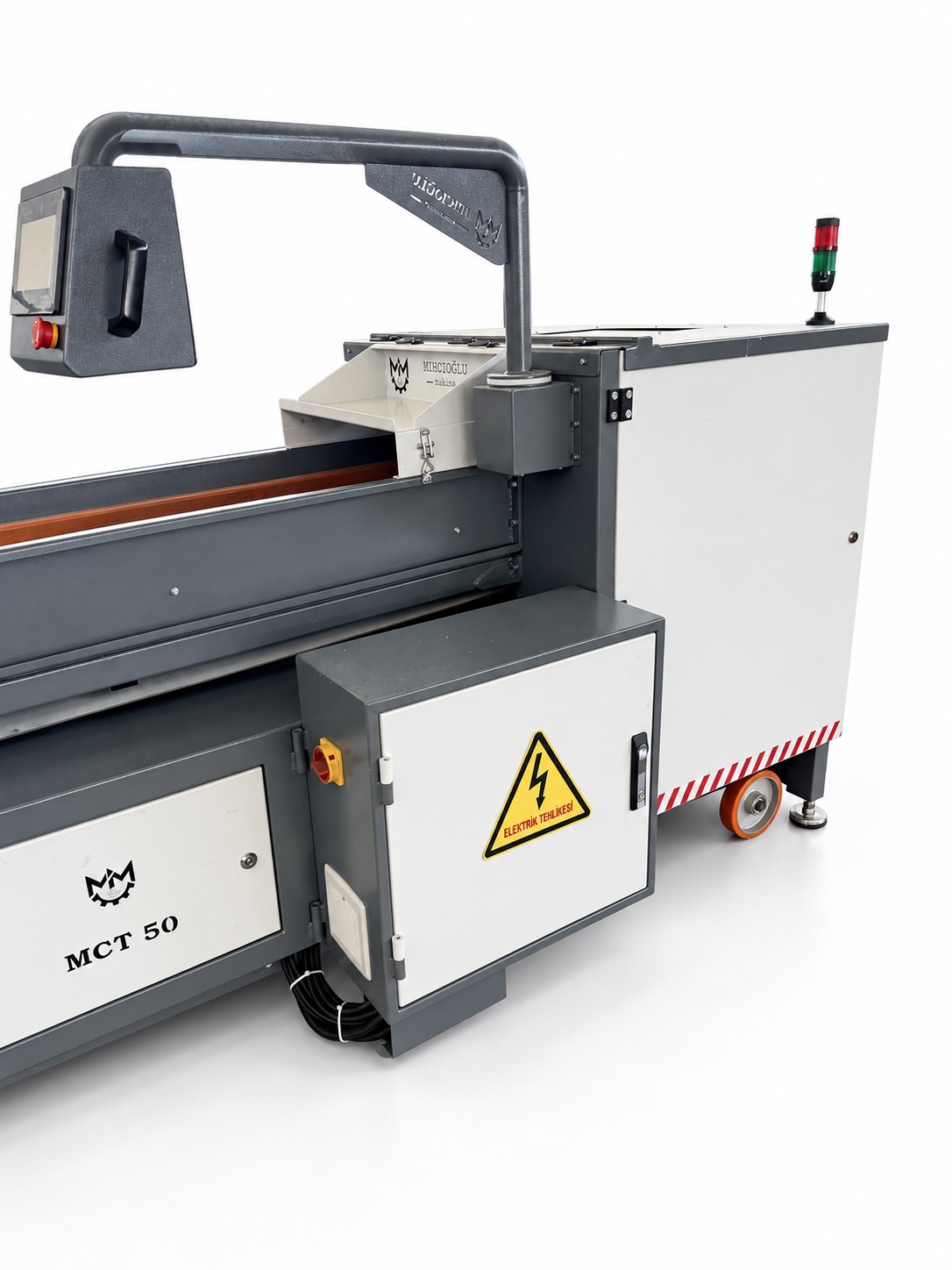

The swivelling control panel gives the operator access to all controls and shows machine faults on the screen.
The inclination of the roller unit is quickly adjusted to the material being cut.
The feed apron is quickly removed; its design keeps material from getting between the belt and the side walls.
The machine is easily positioned with the help of its wheels.
The machine's loading belt can be run in reverse with a single button.
The conveyor belt can be started and stopped at any time with the external belt button on the screen.

How It Works

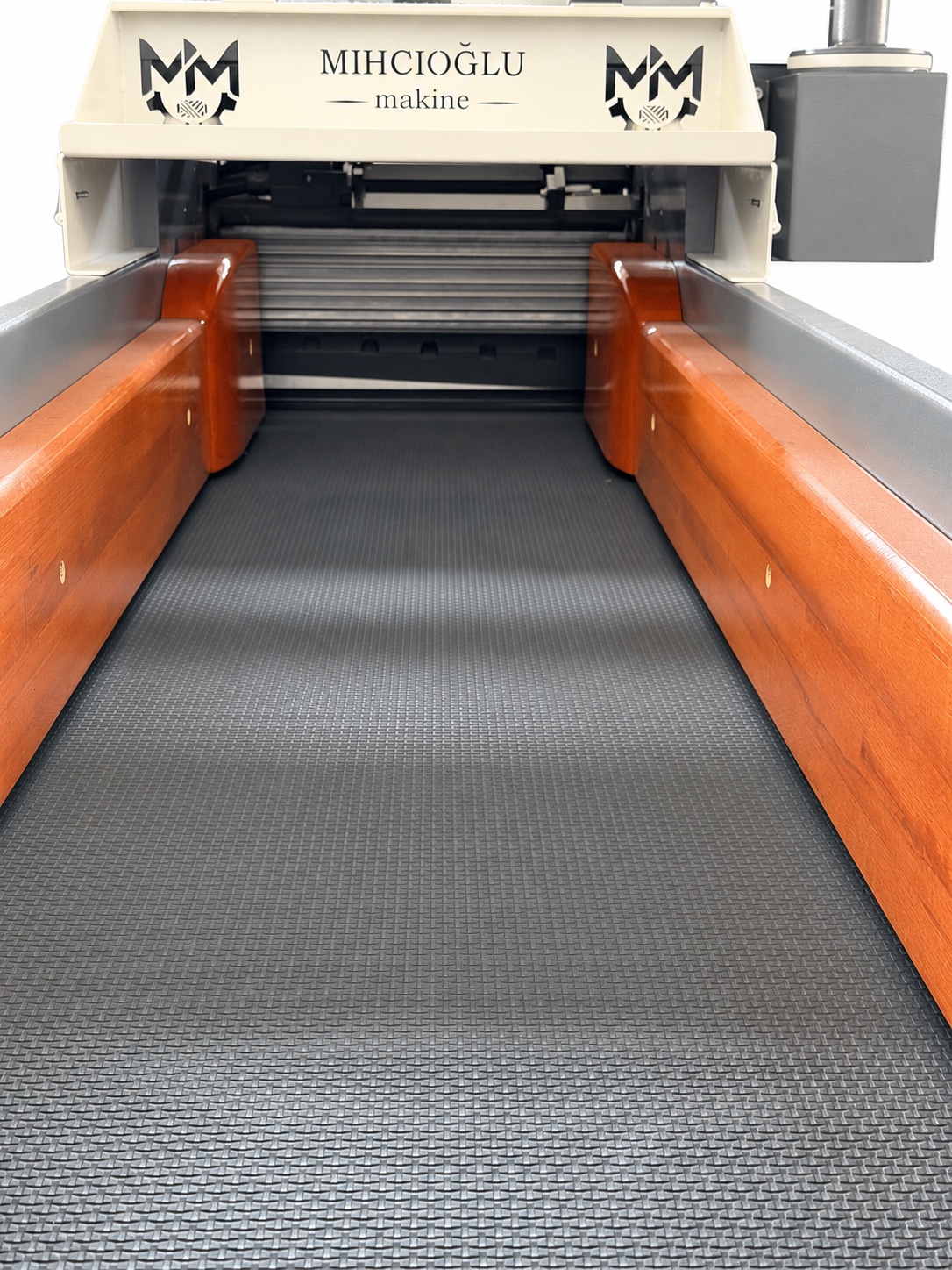

Material is placed on the feed conveyor; the grooved rollers compress it and draw it towards the blades.
The shearing action between the moving and the fixed blade gives a clean, precise cut without burrs or melting.
Roller settings ensure even feeding of material of every type and shape.
In case of overload the conveyor belt stops automatically; the reverse function clears blockages easily.
If material wraps around, the cutter stops automatically.
